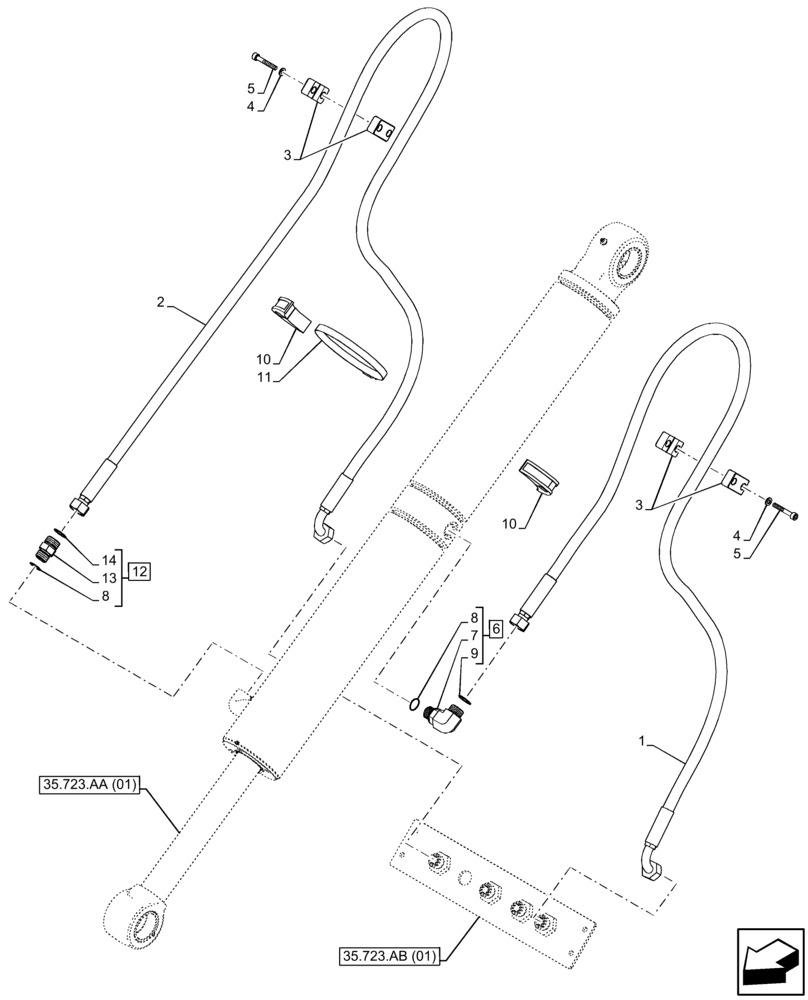

Запчасти Case 21F (35.723.AB[04]) - VAR - 734518 - LOADER BUCKET, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

1

47464724

HYDRAULIC HOSE

Tilt Line

1шт.

2

47464725

HYDRAULIC HOSE

Tilt Line

1шт.

3

217648

CLIP

4шт.

4

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

5

84233542

HEX SOC SCREW

8шт.

6

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

ASSY, Incl 7, 8 (Qty 1), 9

1шт.

7

NSS

NOT SOLD SEPARAT

Elbow, Incl in 6

1шт.

8

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

9

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

10

87565305

ANCHOR

2шт.

11

87690486

CLAMP,149mm ID - 172mm ID, SAE #100

1шт.

12

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

ASSY, Incl 8 (Qty 1), 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

Connector, Incl in 12

1шт.

14

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.
