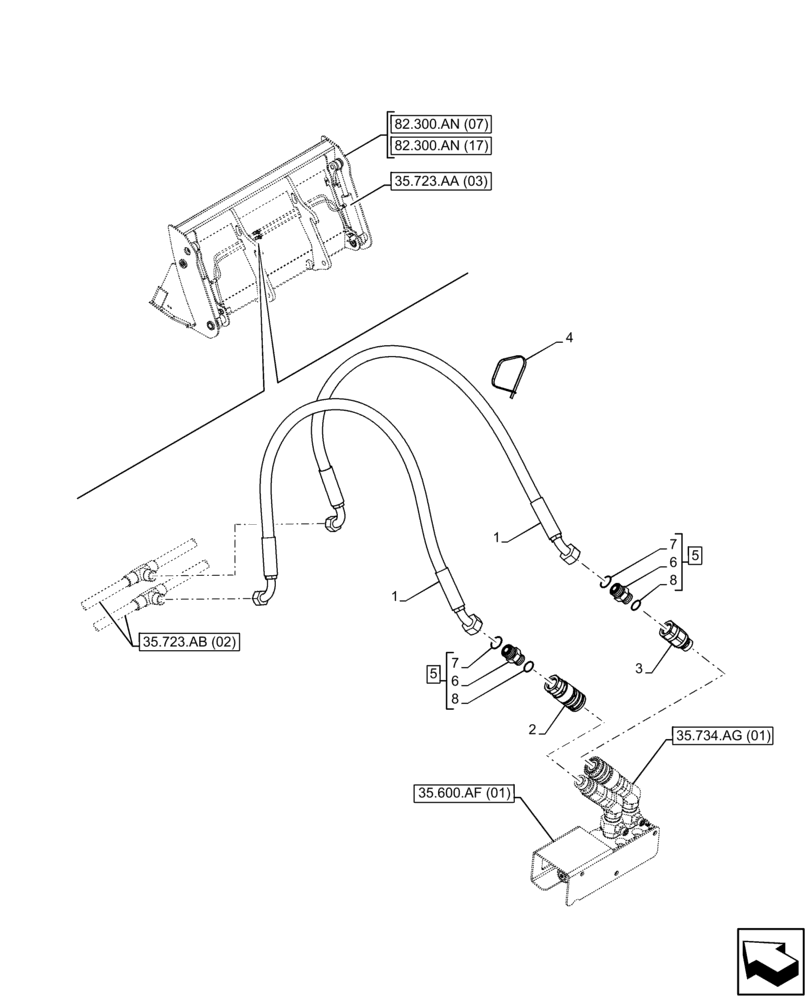

Запчасти Case 21F (35.723.AB[03]) - VAR - 734607 - BUCKET, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case 21F - (35.723.AB[03]) - VAR - 734607 - BUCKET, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/5253555.png)
6
5
35.723.ab (02)
35.734.ag (01)
35.600.af (01)
82.300.an (17)
82.300.an (07)
1
7
2
7
5
8
1
8
4
3
6
35.723.aa (03)
№
Артикул
Название
Примечание
Количество
1
47647016
HYDRAULIC HOSE
4 in 1 Bucket
2шт.
2
47491364
COUPLING, QUICK, FEM
1шт.
3
47491384
QUICK MALE COUPLING
1шт.
4
4982514
CABLE TIE,188mm L
1шт.
6
NSS
NOT SOLD SEPARAT
Connector, Incl in 5
2шт.
5
83963000
FITTING,1" - 14 ORFS x 7/8" - 14 ORB
ASSY, Incl 6 (Qty 1), 7 (Qty 1), 8 (Qty 1)
2шт.
7
80167269
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
2шт.
8
83901443
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
2шт.
Выбрано товаров: 8
