(35.723.AB[02]) - VAR - 734607 - BUCKET, CYLINDER, LINE

Запчасти Case 21F (35.723.AB[02]) - VAR - 734607 - BUCKET, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

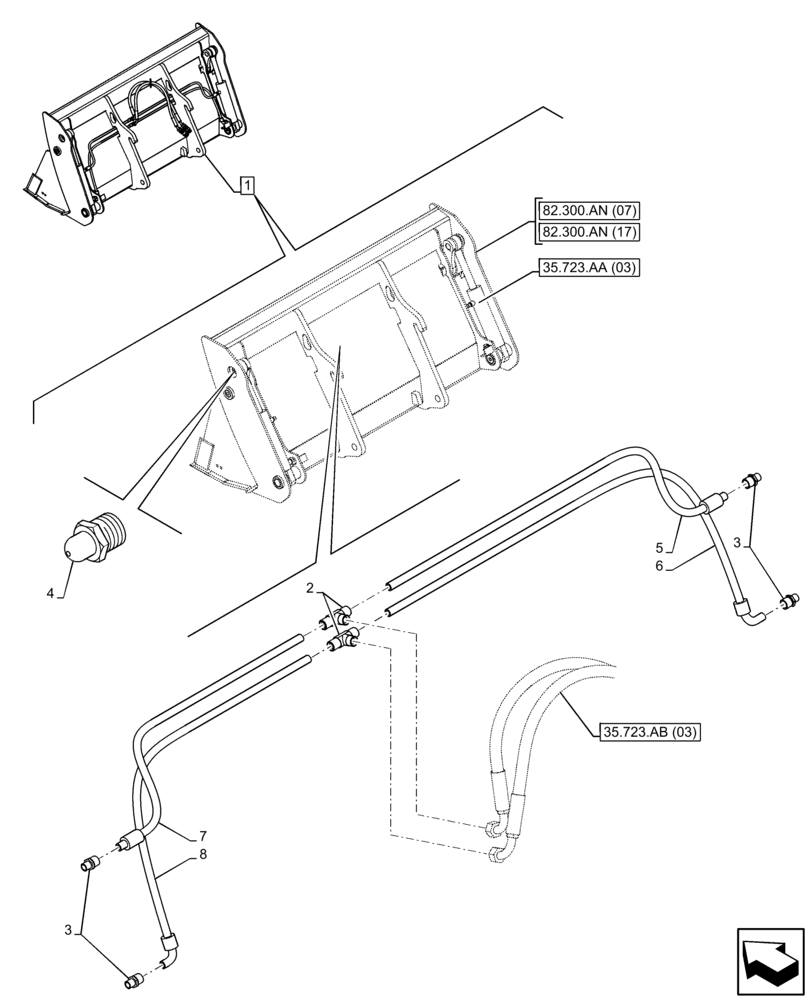

Схема запчастей Case 21F - (35.723.AB[02]) - VAR - 734607 - BUCKET, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS
82.300.an (17)
35.723.ab (03)
35.723.aa (03)
6
1
3
7
3
82.300.an (07)
5
2
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47666064

4 IN 1 BUCKET

1900mm, ASSY, Incl 2 - 8, Years: -18-DEC-15

1шт.

1

47855931

4 IN 1 BUCKET

1900mm, ASSY, Incl 2 - 8, Start Year: 19-DEC-15

1шт.

2

47645174

FITTING

2шт.

3

47645168

NIPPLE

4шт.

4

47648301

LUBE NIPPLE

1шт.

5

47649057

HYD TUBE

1080mm, RH Cylinder

1шт.

6

47649059

HYD TUBE

1220mm, RH Cylinder

1шт.

7

47649060

HYD TUBE

820mm, LH Cylinder

1шт.

8

47649062

HYD TUBE

970mm, LH Cylinder

1шт.
