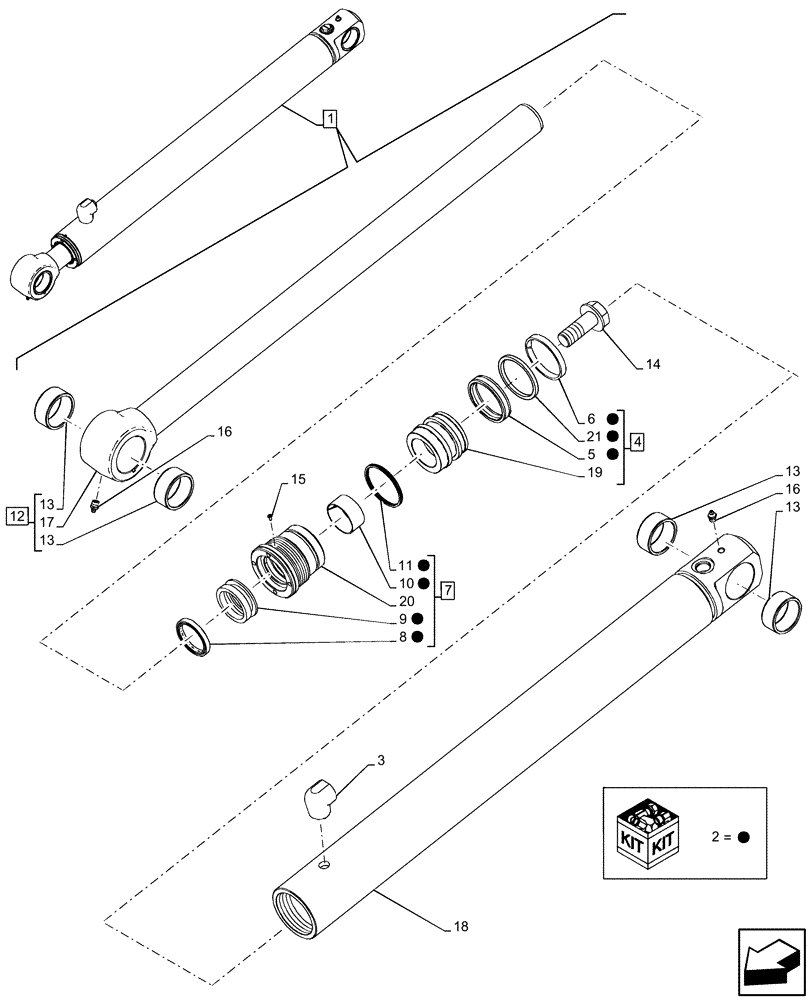

Запчасти Case 21F (35.701.CB[02]) - ARM, CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47448232

HYDRAULIC CYLINDER

ASSY, Incl 2 - 21

1шт.

2

47457167

SEAL KIT

Incl 5, 6, 8 - 11, 21

1шт.

3

D27793

FITTING,7/8" - 14 ORB x 22.4mm ID, 90 Degree

1шт.

4

47458271

PISTON

ASSY, Incl 5, 6, 19, 21

1шт.

5

336027A1

SEAL,98.25mm ID x 102.97mm OD x 6.96mm Thk

1шт.

6

G100448

RING,101.6mm OD, Ext

1шт.

7

47516857

PISTON

ASSY, Incl 8 - 11, 20

1шт.

8

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

1шт.

9

1542876C1

SEAL KIT,50.8mm Rod

1шт.

10

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

1шт.

11

87615482

SEAL,93.85mm ID x 104.57mm OD x 4.85mm Thk

1шт.

12

47457166

ROD

ASSY, Incl 13, 17

1шт.

13

84289063

BUSHING

4шт.

14

86982440

SPECIAL BOLT,Hex, 1-1/4' x 2.75

1шт.

15

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

17

NSS

NOT SOLD SEPARAT

Rod, Incl in 12

1шт.

18

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Piston, Incl in 4

1шт.

20

NSS

NOT SOLD SEPARAT

Gland, Incl in 7

1шт.

21

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

1шт.
