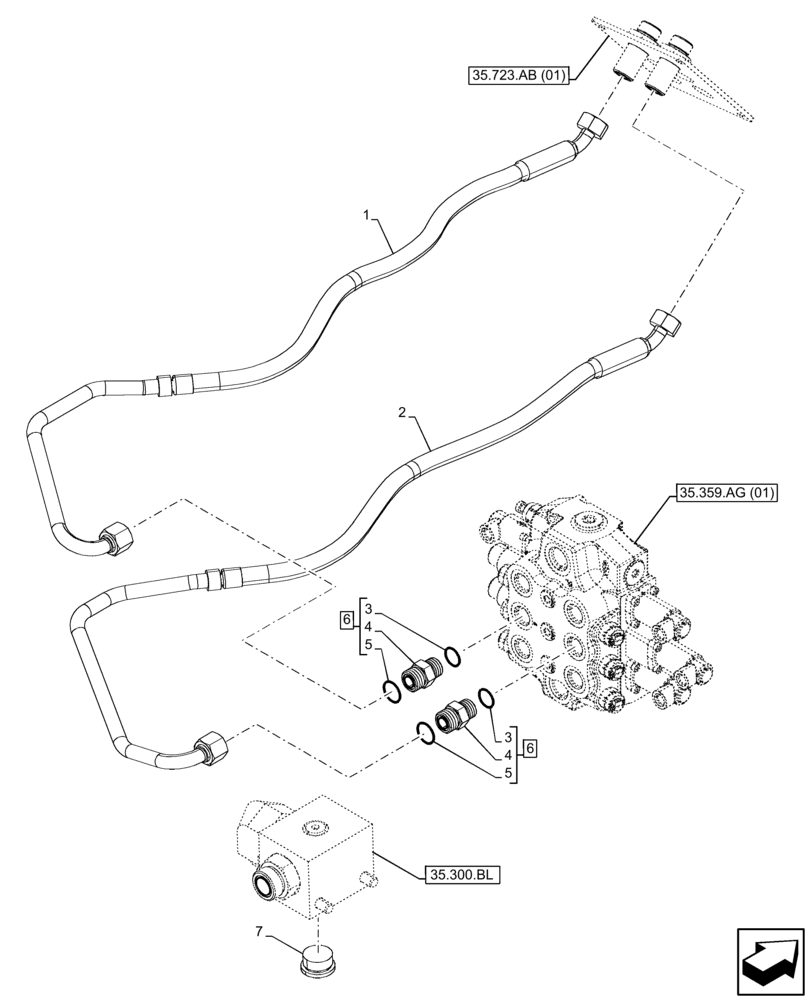

Запчасти Case 21F (35.701.BR[02]) - VAR - 734520 - RIDE CONTROL LINES (35) - HYDRAULIC SYSTEMS

1

47506267

HYD TUBE

Main Valve to Bucket Cylinder Control Valve

1шт.

2

47506269

HYD TUBE

Main Valve to Bucket Cylinder Control Valve

1шт.

3

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

2шт.

5

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

6

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

ASSY, Incl 3 (Qty 1), 4 (Qty 1), 5 (Qty 1)

2шт.

7

87363628

PLUG,1 - 5/16" - 12

1шт.
