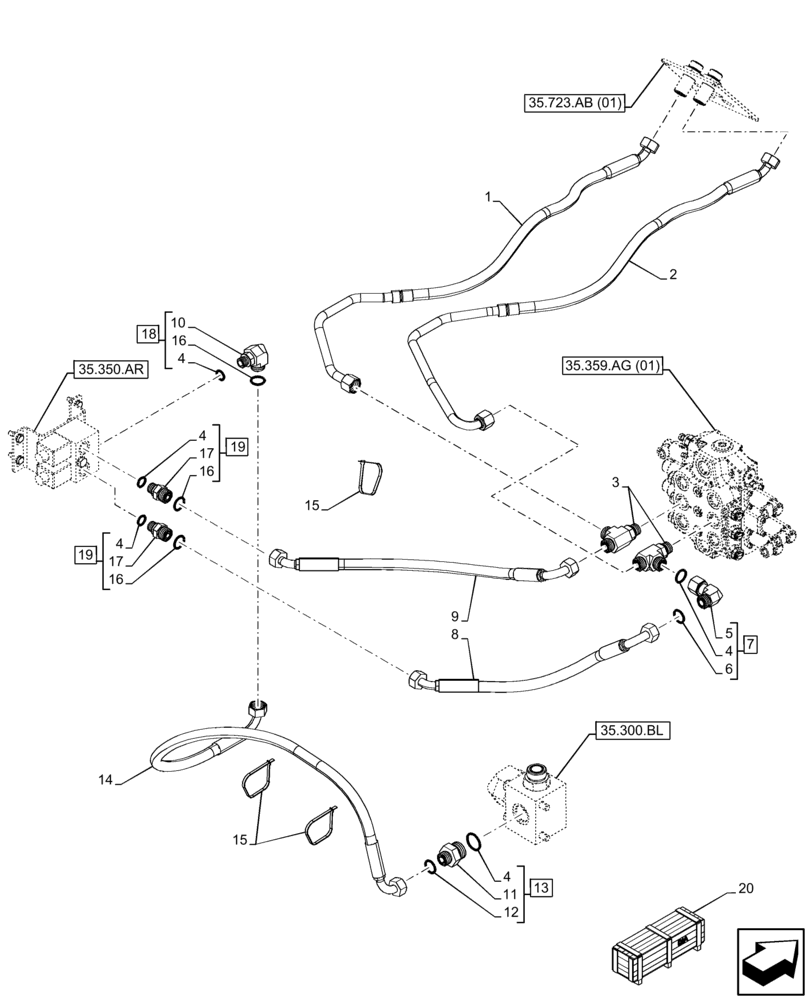

Запчасти Case 21F (35.701.BR[01]) - VAR - 734520 - RIDE CONTROL LINES (35) - HYDRAULIC SYSTEMS

1

47512293

HYD TUBE

Combo to Main Valve A2, Years: -21-JUN-15

1шт.

1

47717326

HYD TUBE

Combo to Main Valve A2, Start Year: 22-JUN-15

1шт.

2

47512291

HYD TUBE

Combo to Main Valve B2, Years: -21-JUN-15

1шт.

2

47720835

HYD TUBE

Combo to Main Valve B2, Start Year: 22-JUN-15

1шт.

3

201-420

TEE,1"-14 x 7/8"-14 Run, ORFS

2шт.

4

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

5шт.

5

NSS

NOT SOLD SEPARAT

Elbow, Incl in 7

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 7

1шт.

7

83999957

HYD CONNECTOR

ASSY, Incl 4 (Qty 1), 5, 6

1шт.

8

47504350

HYDRAULIC HOSE

Ride Control A, Years: -21-JUN-15

1шт.

8

47717316

HYDRAULIC HOSE

Ride Control A, Start Year: 22-JUN-15

1шт.

9

47504761

HYDRAULIC HOSE

Ride Control B, Years: -21-JUN-15

1шт.

9

47717318

HYDRAULIC HOSE

Ride Control B, Start Year: 22-JUN-15

1шт.

10

NSS

NOT SOLD SEPARAT

Elbow, Incl in 18

1шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 13

1шт.

12

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

13

85803241

HYD CONNECTOR,Str Thd, Male, 1"-14 ORFS x 1 5/16"-12 ORB Jump

ASSY, Incl 4 (Qty 1), 11, 12

1шт.

14

47688347

HYDRAULIC HOSE

Ride Control T, Years: -21-JUN-15

1шт.

14

47802887

HYDRAULIC HOSE

Ride Control T, Start Year: 22-JUN-15

1шт.

15

4982514

CABLE TIE,188mm L

3шт.

16

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

17

NSS

NOT SOLD SEPARAT

Connector, Incl in 19

2шт.

18

87530404

90 ELBOW,1-14' ORFS x 3/4-16 ORB

ASSY, Incl 4 (Qty 1), 10, 16 (Qty 1)

1шт.

19

87351379

HYD CONNECTOR

ASSY, Incl 4 (Qty 1), 16 (Qty 1), 17 (Qty 1)

2шт.

20

47700189

CONSTRUCTION DIA

Ride Control W50C, W60C, 21F, 121F TC, Incl 1 - 19

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT PIN Is Shown

1шт.
