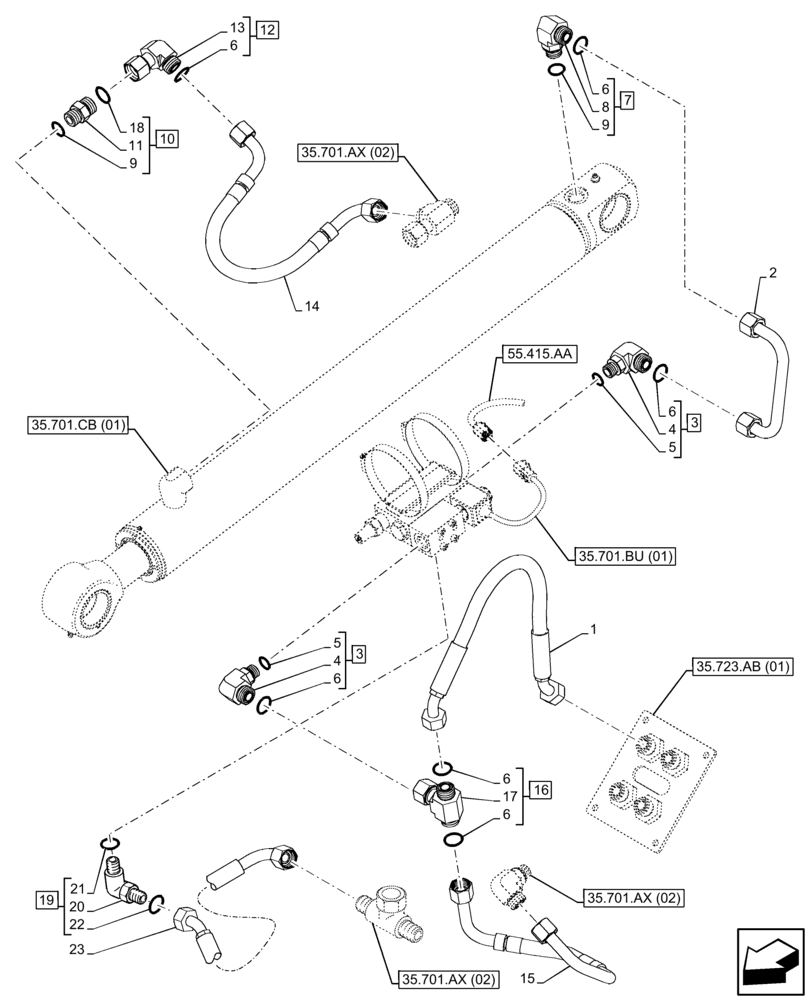

Запчасти Case 21F (35.701.AX[03]) - VAR - 734519 - LOADER ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

1

47556482

HYDRAULIC HOSE

Lift Line Bottom

1шт.

2

47555656

HYD TUBE

Lift Bottom

1шт.

3

87530404

90 ELBOW,1-14' ORFS x 3/4-16 ORB

ASSY, Incl 4 (Qty 1), 5 (Qty 1), 6 (Qty 1)

2шт.

4

NSS

NOT SOLD SEPARAT

Elbow, Incl in 3

2шт.

5

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

6

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

6шт.

7

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

ASSY, Incl 6 (Qty 1), 8, 9 (Qty 1)

1шт.

8

NSS

NOT SOLD SEPARAT

Elbow, Incl in 7

1шт.

9

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

10

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

ASSY, Incl 9 (Qty 1), 11, 18

1шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

1шт.

12

84989393

ELBOW,90 Degree, 1"-14 ORFS x 1"-14 Fem Sw

ASSY, Incl 6 (Qty 1), 13

1шт.

13

NSS

NOT SOLD SEPARAT

Union elbow, Incl in 12

1шт.

14

47529558

HYD TUBE

Lift Rod Connection

1шт.

15

47556480

HYD TUBE

Lift Bottom Connection

1шт.

16

78100043

TEE

ASSY, Incl 6 (Qty 2), 17

1шт.

17

NSS

NOT SOLD SEPARAT

Plug, Incl in 16

1шт.

18

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

19

85805220

ELBOW,90 Degree, 9/16"-18 x 9/16"-18 Adj, ORFS

ASSY, Incl 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

Elbow, Incl in 19

1шт.

21

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

22

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

47529521

HYDRAULIC HOSE

Pilot Connection

1шт.
