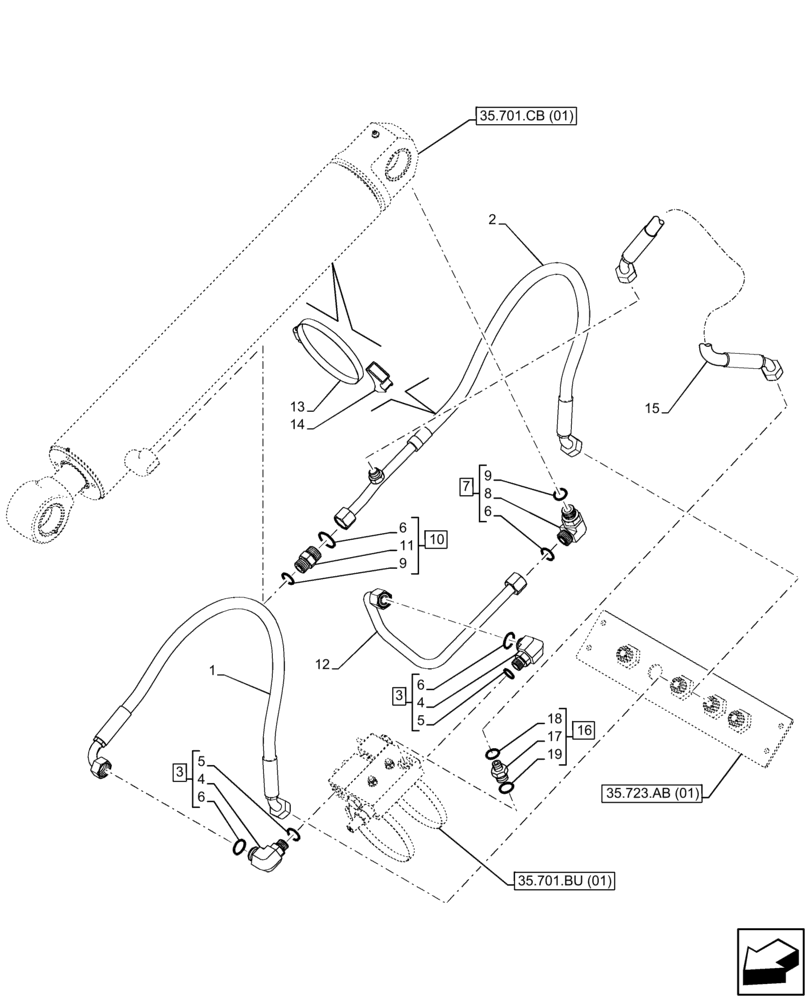

Запчасти Case 21F (35.701.AX[02]) - VAR - 734519 - LOADER ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

1

47547862

HYDRAULIC HOSE

Lift Line Bottom

1шт.

2

47745706

HYD TUBE

Lift Line

1шт.

3

87530404

90 ELBOW,1-14' ORFS x 3/4-16 ORB

ASSY, Incl 4 (Qty 1), 5 (Qty 1), 6 (Qty 1)

2шт.

4

NSS

NOT SOLD SEPARAT

Elbow, Incl in 3

2шт.

5

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

6

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

7

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

ASSY, Incl 6 (Qty 1), 8, 9 (Qty 1)

1шт.

8

NSS

NOT SOLD SEPARAT

Elbow, Incl in 7

1шт.

9

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

10

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

ASSY, Incl 6 (Qty 1), 9 (Qty 1), 11

1шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

1шт.

12

47547875

HYD TUBE

Lift Line

1шт.

13

79083854

HOSE CLAMP,120mm - 145mm, Worm Gear

1шт.

14

83901828

SPACER,R8.4mm, R45mm

1шт.

15

47547880

HYDRAULIC HOSE

Lift Valve Pilot

1шт.

16

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

ASSY, Incl 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

Connector, Incl in 16

1шт.

18

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 16

1шт.

19

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 16

1шт.
