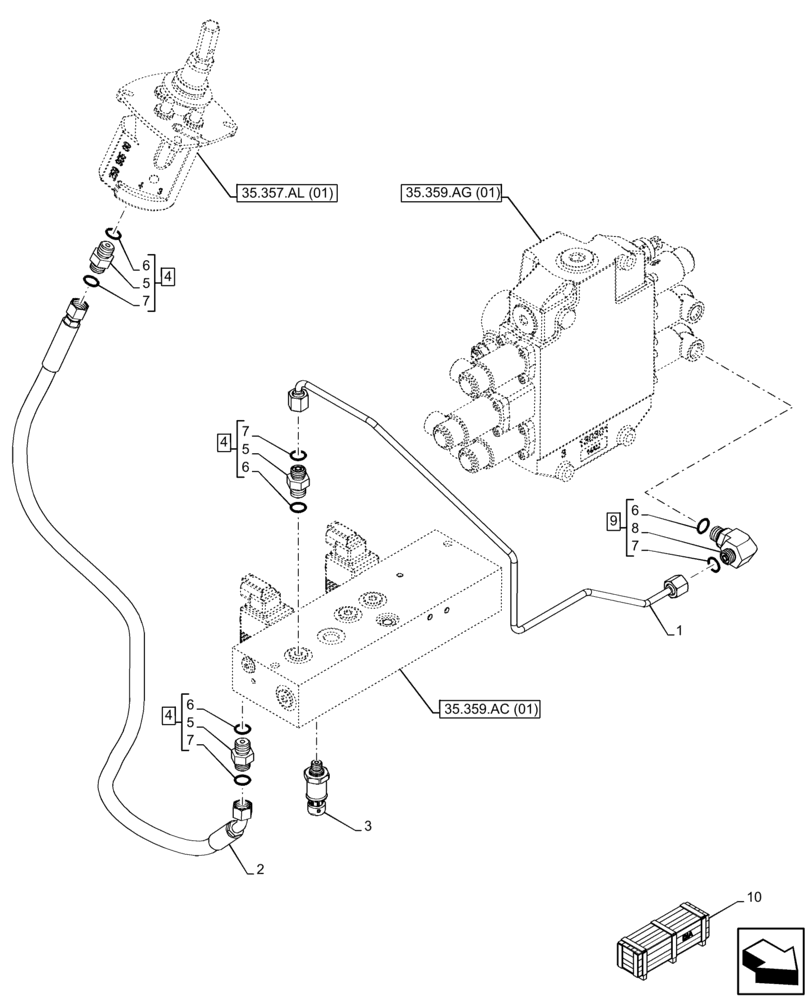

Запчасти Case 21F (35.701.AD[01]) - VAR - 782734 - LOADER BUCKET, CONTROL, HYD. LINE (35) - HYDRAULIC SYSTEMS

1

47417948

HYD TUBE

Manifold A1 to Pilot Valve

1шт.

2

47501117

HYDRAULIC HOSE

1шт.

3

84597744

SENSOR

Pressure

1шт.

4

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

ASSY, Incl 5 (Qty 1), 6 (Qty 1), 7 (Qty 1)

3шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

3шт.

6

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

4шт.

7

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

8

NSS

NOT SOLD SEPARAT

Elbow, Incl in 9

1шт.

9

85805220

ELBOW,90 Degree, 9/16"-18 x 9/16"-18 Adj, ORFS

ASSY, Incl 6 (Qty 1), 7 (Qty 1), 8 (Qty 1)

1шт.

10

47700216

CONSTRUCTION DIA

Return to Dig W50C, W60C, 21F, 121F TC, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT PIN Is Shown

1шт.

10

47700231

CONSTRUCTION DIA

Return to Dig W50C, W60C, 21F, 121F Z Bar, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT PIN Is Shown

1шт.
