(35.600.AF[04B]) - VAR - 734584, 734652 - CONTROL VALVE, RETURN, LINE - BEGIN DATE 19 DECEMBER 2015

Запчасти Case 21F (35.600.AF[04B]) - VAR - 734584, 734652 - CONTROL VALVE, RETURN, LINE - BEGIN DATE 19 DECEMBER 2015 (35) - HYDRAULIC SYSTEMS

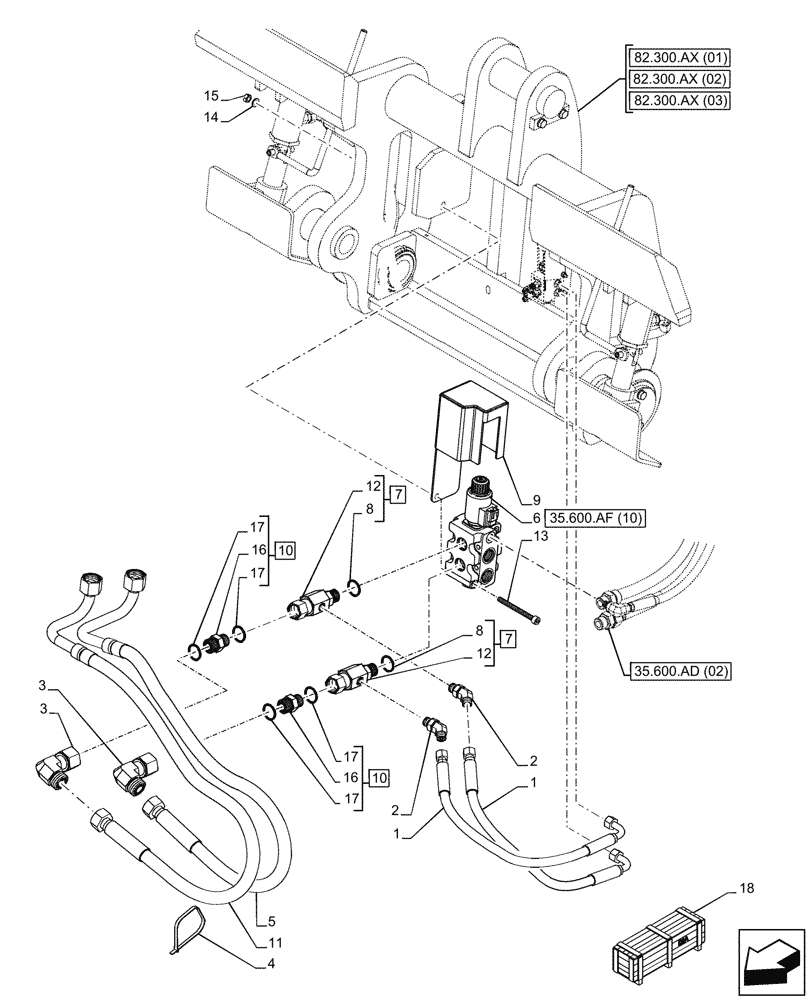

Схема запчастей Case 21F - (35.600.AF[04B]) - VAR - 734584, 734652 - CONTROL VALVE, RETURN, LINE - BEGIN DATE 19 DECEMBER 2015 (35) - HYDRAULIC SYSTEMS
35.600.ad (02)
17
7
18
10
4
16
11
8
9
12
2
12
14
17
2
3
6
13
15
1
5
16
7
8
3
1
17
17
10
82.300.ax (02)
82.300.ax (03)
35.600.af (10)
82.300.ax (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47744934

HYDRAULIC HOSE

4th Quick Coupler Valve

2шт.

2

83961740

ELBOW

2шт.

3

83999957

HYD CONNECTOR

2шт.

4

4982514

CABLE TIE,188mm L

1шт.

5

47850351

HYD TUBE

3rd Function

1шт.

6

47639119

VALVE

Flow Diverter

1шт.

7

47635576

FITTING

ASSY, Incl 8, 12

2шт.

8

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 7

2шт.

9

47571639

PLATE

1шт.

10

84431473

HYD CONNECTOR,1"-14 ORFS

ASSY, Incl 16, 17 (Qty 2)

2шт.

11

47850353

HYD TUBE

3rd Function

1шт.

12

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

2шт.

13

14307134

SCREW,M8 x 1.25 x 90mm, Cl 10.9

2шт.

14

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

15

43362

NUT,M8 x 1.25, Cl 10

2шт.

16

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

2шт.

17

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

18

47700342

CONSTRUCTION DIA

Hydraulic System 4th Function TC, Incl 1 - 17

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT PIN Is Shown

1шт.
