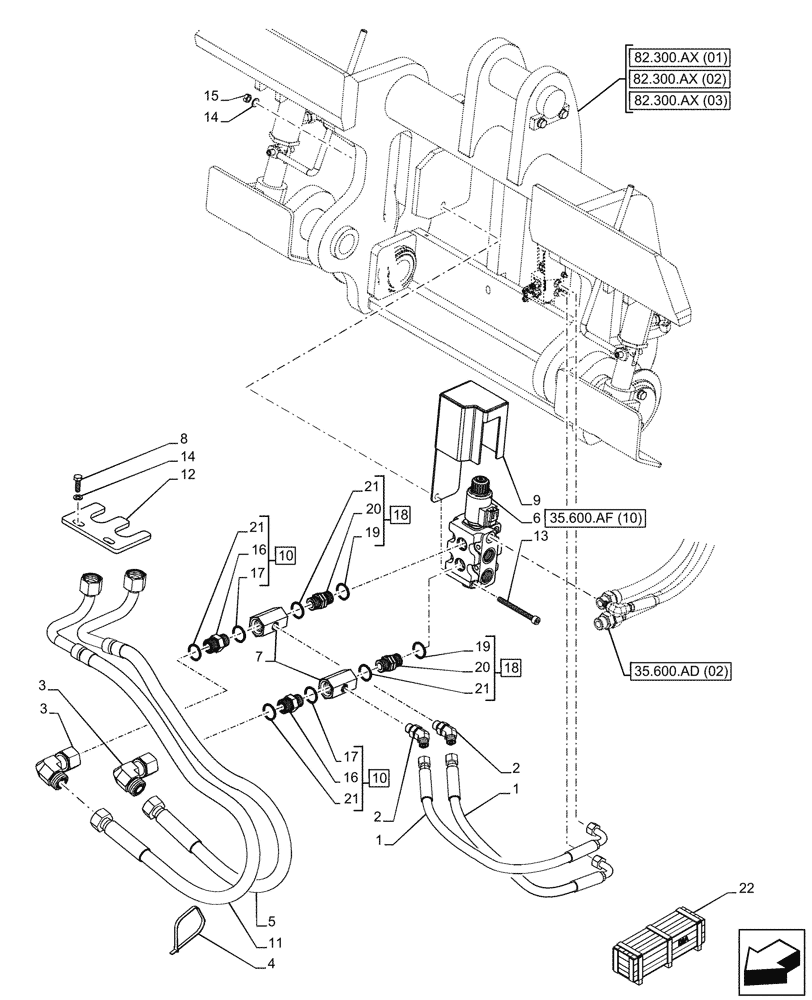

Запчасти Case 21F (35.600.AF[04A]) - VAR - 734584, 734652 - CONTROL VALVE, RETURN, LINE - BEGIN SN NFHP00452, END DATE 18 DECEMBER 2015 (35) - HYDRAULIC SYSTEMS

1

47744934

HYDRAULIC HOSE

4th Quick Coupler Valve

2шт.

2

83961740

ELBOW

2шт.

3

83999957

HYD CONNECTOR

2шт.

4

4982514

CABLE TIE,188mm L

1шт.

5

47737206

HYD TUBE

3rd Function Coupling

1шт.

6

47639119

VALVE

Flow Diverter

1шт.

7

47478626

HYD CONNECTOR

2шт.

8

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

2шт.

9

47571639

PLATE

1шт.

10

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

ASSY, Incl 16 (Qty 1), 17 (Qty 1), 21 (Qty 1)

2шт.

11

47737769

HYD TUBE

3rd Function Coupling

1шт.

12

47503403

PLATE

1шт.

13

14307134

SCREW,M8 x 1.25 x 90mm, Cl 10.9

2шт.

14

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

15

43362

NUT,M8 x 1.25, Cl 10

2шт.

16

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

2шт.

17

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

18

87412807

FITTING

ASSY, Incl 19 (Qty 1), 20 (Qty 1), 21 (Qty 1)

2шт.

19

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 18

2шт.

20

NSS

NOT SOLD SEPARAT

Connector, Incl in 18

2шт.

21

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

22

47700342

CONSTRUCTION DIA

Hydraulic System 4th Function TC, Incl 1 - 21

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT PIN Is Shown

1шт.
