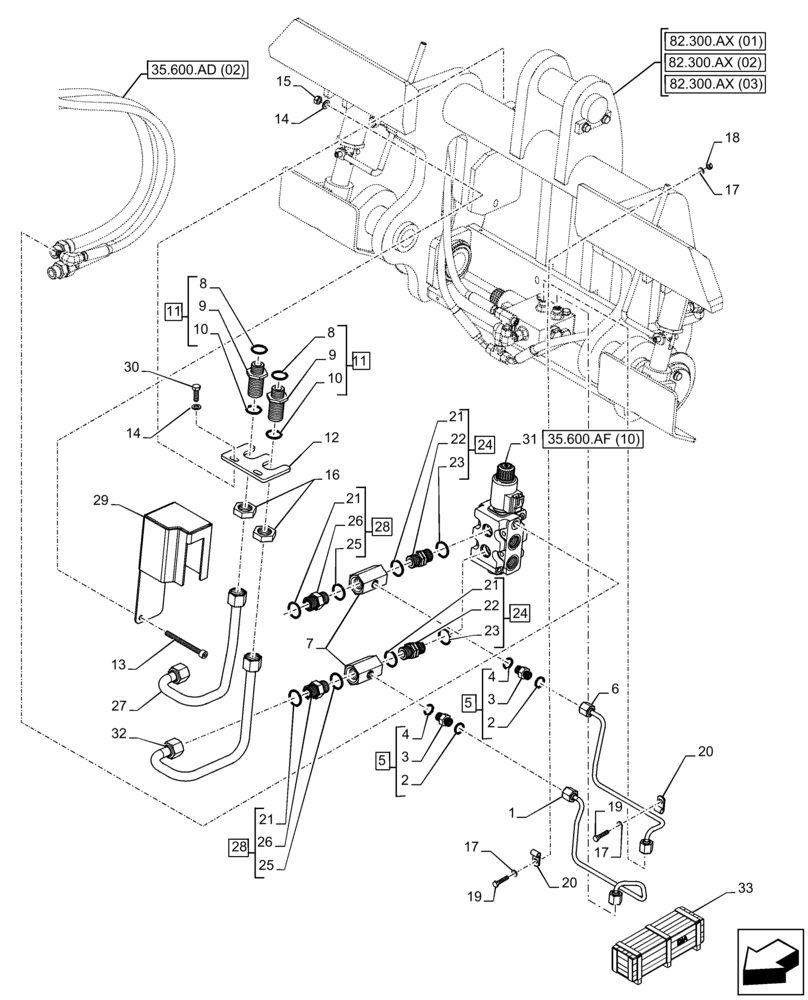

Запчасти Case 21F (35.600.AF[02]) - VAR - 402031, 732006 - CONTROL VALVE, RETURN, LINE - END SN NFHP00538 (35) - HYDRAULIC SYSTEMS

1

47536500

HYD TUBE

Quick Coupler Feed Line Pipe

1шт.

2

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

2шт.

4

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

5

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

ASSY, Incl 2 (Qty 1), 3 (Qty 1), 4 (Qty 1)

2шт.

6

47536498

HYD TUBE

Quick Coupler Feed Line Pipe

1шт.

7

47478626

HYD CONNECTOR

2шт.

8

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 11

2шт.

10

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 11

2шт.

11

87381299

HYD CONNECTOR

ASSY, Incl 8 (Qty 1), 9 (Qty 1), 10 (Qty 1)

2шт.

12

47503403

PLATE

1шт.

13

14307134

SCREW,M8 x 1.25 x 90mm, Cl 10.9

2шт.

14

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

15

43362

NUT,M8 x 1.25, Cl 10

2шт.

16

86639085

BHD LOCK NUT,1"-14, Bulkhead

2шт.

17

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

18

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

19

10902831

SCREW,Hex, M6 x 30mm, Cl 10.9

2шт.

20

80272535

WIRE CLAMP,6.3mm, Coat, 7.1mm Bolt Hole, P Type

2шт.

21

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

22

NSS

NOT SOLD SEPARAT

Connector, Incl in 24

2шт.

23

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 24

2шт.

24

87412807

FITTING

ASSY, Incl 21 (Qty 1), 22 (Qty 1), 23 (Qty 1)

2шт.

25

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

26

NSS

NOT SOLD SEPARAT

Connector, Incl in 28

2шт.

27

47503323

HYD TUBE

3rd Function Coupling

1шт.

28

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

ASSY, Incl 21 (Qty 1), 25 (Qty 1), 26 (Qty 1)

2шт.

29

47571639

PLATE

1шт.

30

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

2шт.

31

47639119

VALVE

Flow Diverter

1шт.

32

47503325

HYD TUBE

3rd Function Coupling

1шт.

33

47700352

CONSTRUCTION DIA

Hydraulic System 4th Function TC Skid, Incl 1 - 32

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT PIN Is Shown

1шт.
