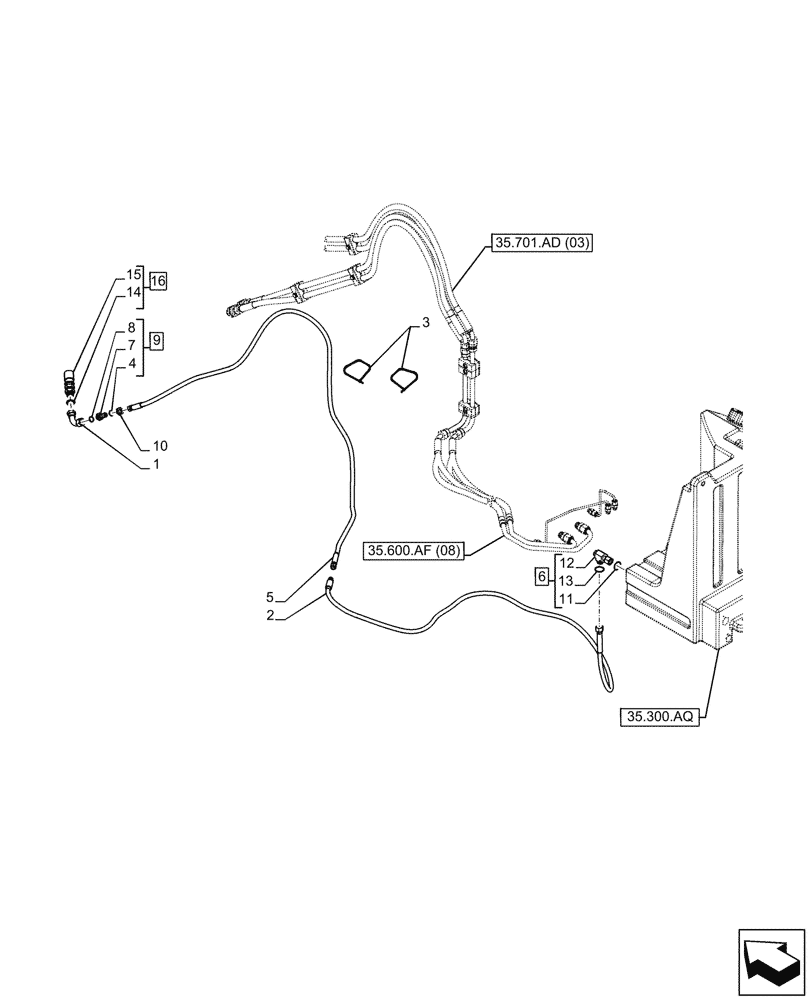

Запчасти Case 21F (35.600.AD[11]) - VAR - 732002, 732005, 734648, 734651 - QUICK COUPLER, LINES (35) - HYDRAULIC SYSTEMS

1

47691088

90 ELBOW

1шт.

2

47686922

HYDRAULIC HOSE

1шт.

3

4982514

CABLE TIE,188mm L

3шт.

4

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

5

47501223

FLEXIBLE HOSE

1шт.

6

86624132

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

ASSY, Incl 11 - 13

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

1шт.

8

NSS

NOT SOLD SEPARAT

O Ring, Incl in 9

1шт.

9

86639059

UNION,9/16"-18 ORFS, Blkd

ASSY, Incl 4 (Qty 1), 7, 8

1шт.

10

86639063

BHD LOCK NUT,9/16"-18, ORFS Blkhd

1шт.

11

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

13

NSS

NOT SOLD SEPARAT

O Ring, Incl in 6

1шт.

14

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

15

NSS

NOT SOLD SEPARAT

Quick Coupling, Incl in 16

1шт.

16

87305110

COUPLING, QUICK, FEM

ASSY, Incl 14, 15

1шт.
