(35.600.AD[10]) - VAR - 402047, 732006, 734652 - AUXILIARY HYDRAULIC, DRAIN LINE, COUPLING

Запчасти Case 21F (35.600.AD[10]) - VAR - 402047, 732006, 734652 - AUXILIARY HYDRAULIC, DRAIN LINE, COUPLING (35) - HYDRAULIC SYSTEMS

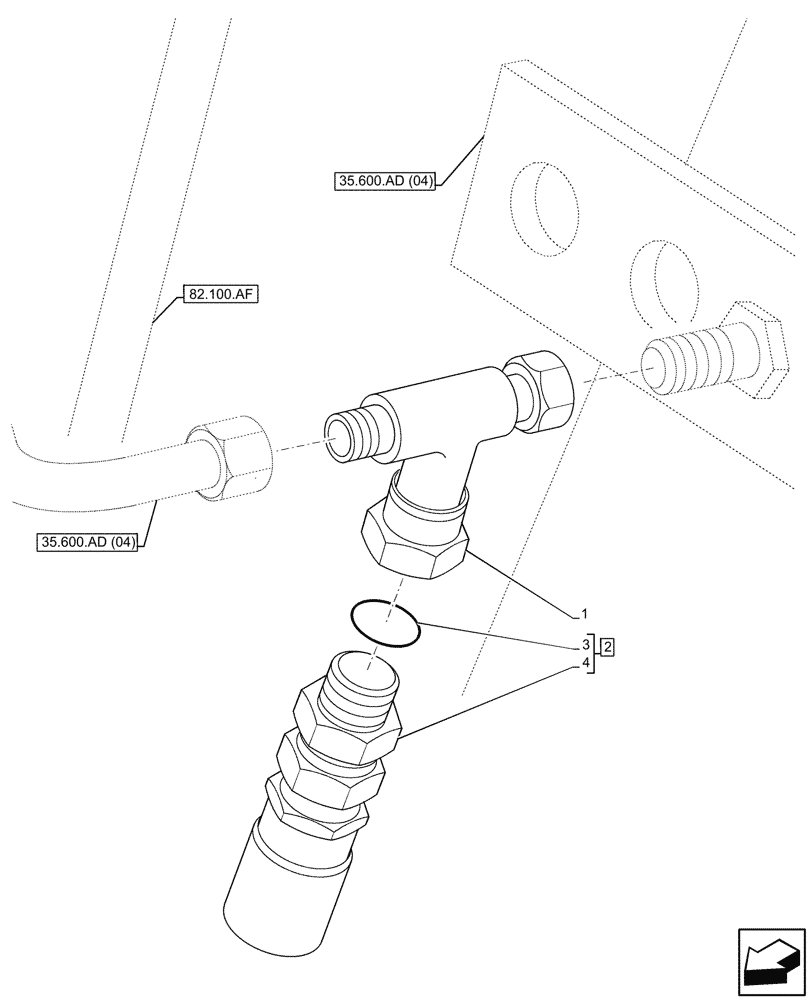

Схема запчастей Case 21F - (35.600.AD[10]) - VAR - 402047, 732006, 734652 - AUXILIARY HYDRAULIC, DRAIN LINE, COUPLING (35) - HYDRAULIC SYSTEMS
82.100.af
3
4
1
2
35.600.ad (04)
35.600.ad (04)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47684261

FITTING

1шт.

2

87305110

COUPLING, QUICK, FEM

ASSY, Incl 3 (Qty 1), 4 (Qty 1)

1шт.

3

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

4

NSS

NOT SOLD SEPARAT

Quick Coupling, Incl in 2

1шт.

Выбрано товаров: 4
