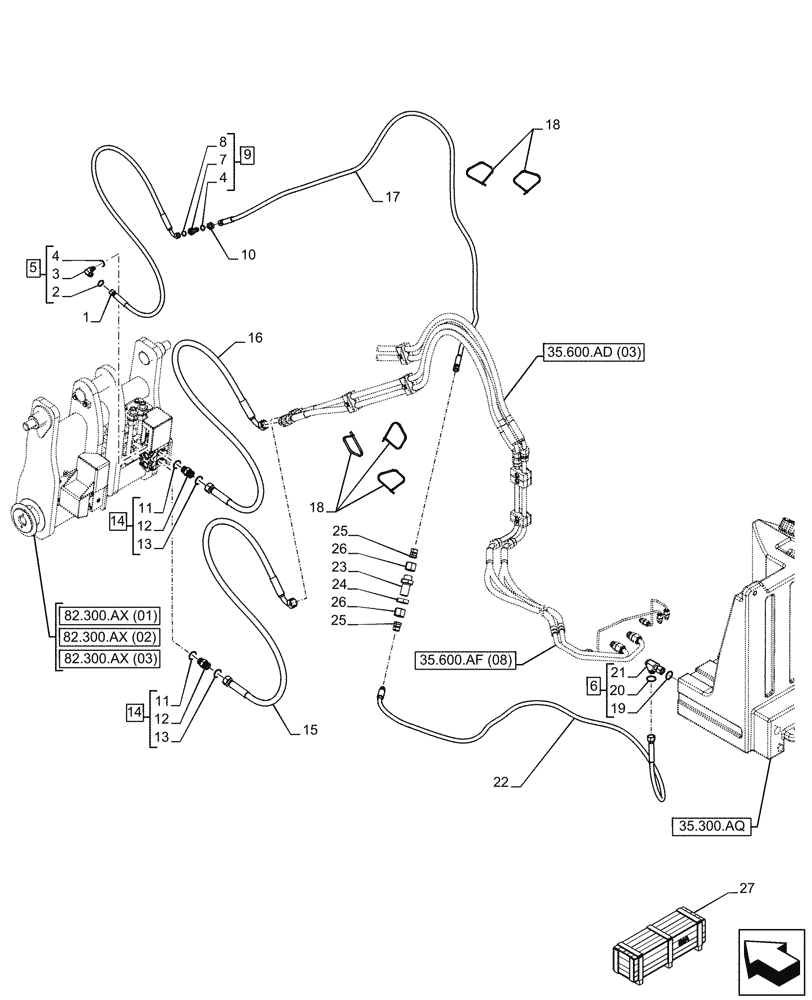

Запчасти Case 21F (35.600.AD[02]) - VAR - 402031, 732006, 734584, 734652 - QUICK COUPLER, LINE (35) - HYDRAULIC SYSTEMS

1

47501218

FLEXIBLE HOSE

1шт.

2

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

4

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

5

87681199

90 ELBOW

ASSY, Incl 2 - 4 (Qty 1)

1шт.

6

86624132

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

ASSY, Incl 19 - 21

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

1шт.

8

NSS

NOT SOLD SEPARAT

O Ring, Incl in 9

1шт.

9

86639059

UNION,9/16"-18 ORFS, Blkd

ASSY, Incl 4 (Qty 1), 7, 8

1шт.

10

86639063

BHD LOCK NUT,9/16"-18, ORFS Blkhd

1шт.

11

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl in 14

2шт.

13

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

14

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

ASSY, Incl 11 (Qty 1), 12 (Qty 1), 13 (Qty 1)

2шт.

15

47500389

FLEXIBLE HOSE

1шт.

16

47503421

FLEXIBLE HOSE

1шт.

17

47501223

FLEXIBLE HOSE

, Years: -21-JUN-15

1шт.

17

47801855

HYDRAULIC HOSE

, Start Year: 22-JUN-15

1шт.

18

4982514

CABLE TIE,188mm L

, Years: -21-JUN-15

5шт.

18

4982514

CABLE TIE,188mm L

, Start Year: 22-JUN-15

7шт.

19

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

20

NSS

NOT SOLD SEPARAT

O Ring, Incl in 6

1шт.

21

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

22

47686922

HYDRAULIC HOSE

, Years: -21-JUN-15

1шт.

22

47803233

HYDRAULIC HOSE

, Start Year: 22-JUN-15

1шт.

23

76088778

UNION

, Start Year: 22-JUN-15

1шт.

24

86639085

BHD LOCK NUT,1"-14, Bulkhead

, Start Year: 22-JUN-15

1шт.

25

201-146

REDUCER,13/16"-16 Male x 1"-14 Fem, ORFS

, Start Year: 22-JUN-15

2шт.

26

703-903

TUBE NUT,1" - 14

, Start Year: 22-JUN-15

2шт.

27

47700342

CONSTRUCTION DIA

Hydraulic System 4th Function TC, Incl 1 - 18, 22 - 25

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT PIN Is Shown

1шт.

27

47700352

CONSTRUCTION DIA

Hydraulic System 4th Function TC Skid, Incl 1 - 18, 22 - 25

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT PIN Is Shown

1шт.
