(35.600.AD[01]) - VAR - 732005, 734586, 734651 - QUICK COUPLER, LINES

Запчасти Case 21F (35.600.AD[01]) - VAR - 732005, 734586, 734651 - QUICK COUPLER, LINES (35) - HYDRAULIC SYSTEMS

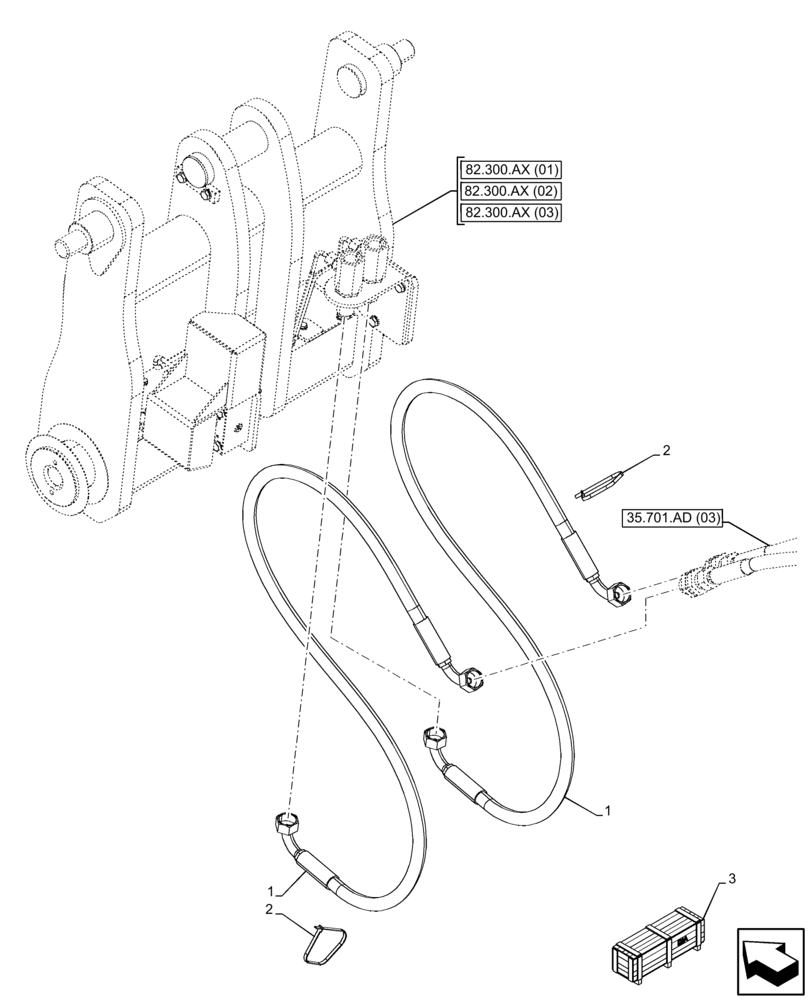

Схема запчастей Case 21F - (35.600.AD[01]) - VAR - 732005, 734586, 734651 - QUICK COUPLER, LINES (35) - HYDRAULIC SYSTEMS
1
2
82.300.ax (02)
3
35.701.ad (03)
2
82.300.ax (03)
1
82.300.ax (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47728534

HYDRAULIC HOSE

3rd Function

2шт.

2

4982514

CABLE TIE,188mm L

2шт.

3

47706103

CONSTRUCTION DIA

Hydraulic Quick Coupler Standard TC, Incl 1, 2

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.
