(35.525.AA[03]) - VAR - 402044 - AUXILIARY HYDRAULIC, LINES, PLUG

Запчасти Case 21F (35.525.AA[03]) - VAR - 402044 - AUXILIARY HYDRAULIC, LINES, PLUG (35) - HYDRAULIC SYSTEMS

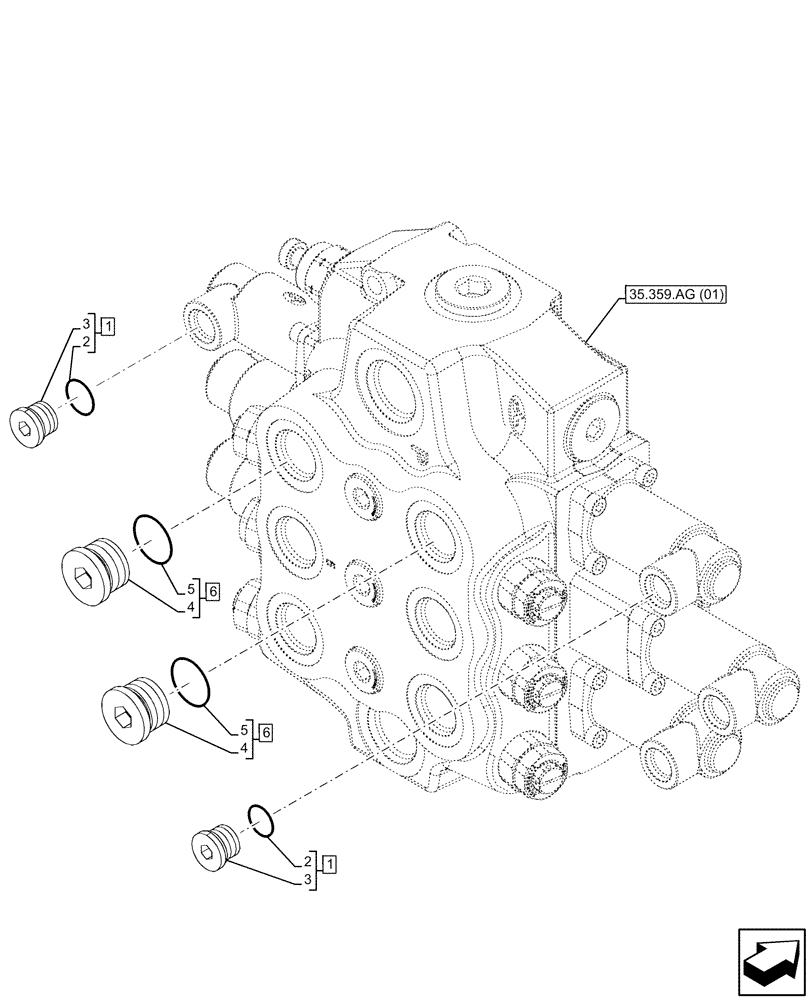

Схема запчастей Case 21F - (35.525.AA[03]) - VAR - 402044 - AUXILIARY HYDRAULIC, LINES, PLUG (35) - HYDRAULIC SYSTEMS
5
2
4
1
6
35.359.ag (01)
5
4
3
2
3
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

9625178

PLUG,9/16" - 18 ORB

ASSY, Incl 2 (Qty 1), 3 (Qty 1)

2шт.

2

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

3

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.

4

NSS

NOT SOLD SEPARAT

Plug, Incl in 6

2шт.

5

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

6

86625138

PLUG,7/18" - 14

ASSY, Incl 4 (Qty 1), 5 (Qty 1)

2шт.

Выбрано товаров: 6
