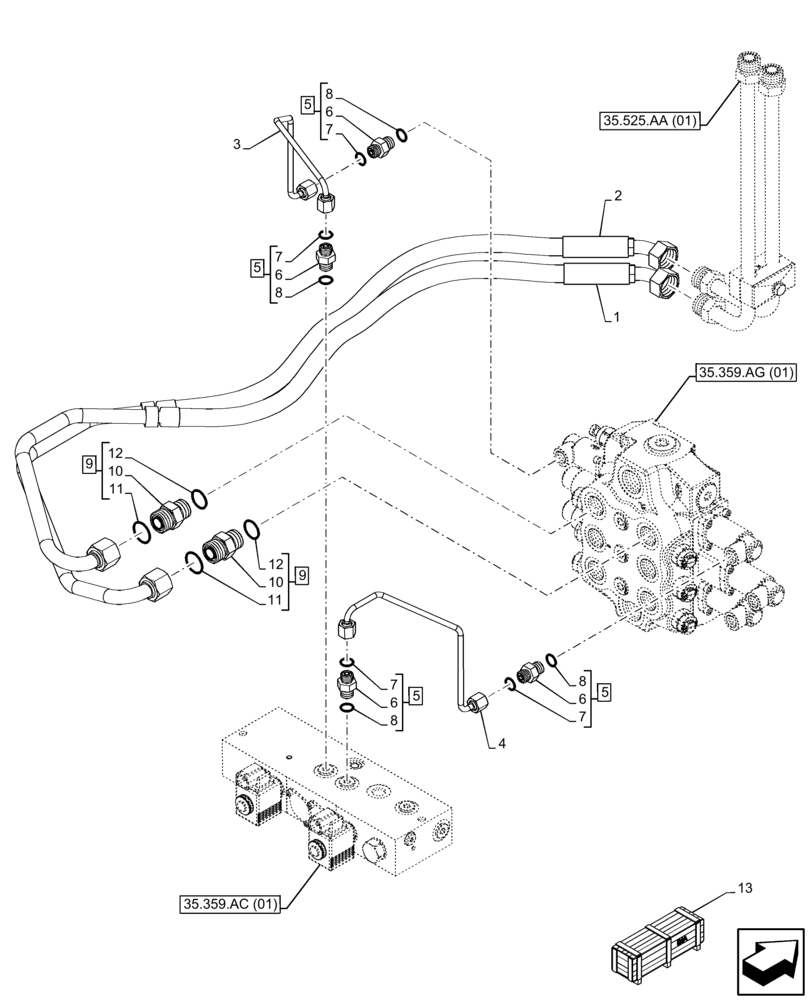

Запчасти Case 21F (35.525.AA[02]) - VAR - 734637 - AUXILIARY HYDRAULIC, LINES (35) - HYDRAULIC SYSTEMS

1

47506265

HYD TUBE

Combo, A1 Main Valve

1шт.

2

47506266

HYD TUBE

Combo, A1 Main Valve

1шт.

3

47417956

HYD TUBE

B2 Pilot Manifold

1шт.

4

47417971

HYD TUBE

B1 Pilot Manifold

1шт.

5

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

ASSY, Incl 6 (Qty 1), 7 (Qty 1), 8 (Qty 1)

4шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

4шт.

7

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

8

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

4шт.

9

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

ASSY, Incl 10 (Qty 1), 11 (Qty 1), 12 (Qty 1)

2шт.

10

NSS

NOT SOLD SEPARAT

Connector, Incl in 20

2шт.

11

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

12

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

13

47704682

CONSTRUCTION DIA

Hydraulic Standard Provision W50C, W60C, 21F, 121F Z Bar, Incl 1 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT PIN Is Shown

1шт.
