Запчасти Case 21F (35.359.AG[04]) - DIRECTIONAL CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

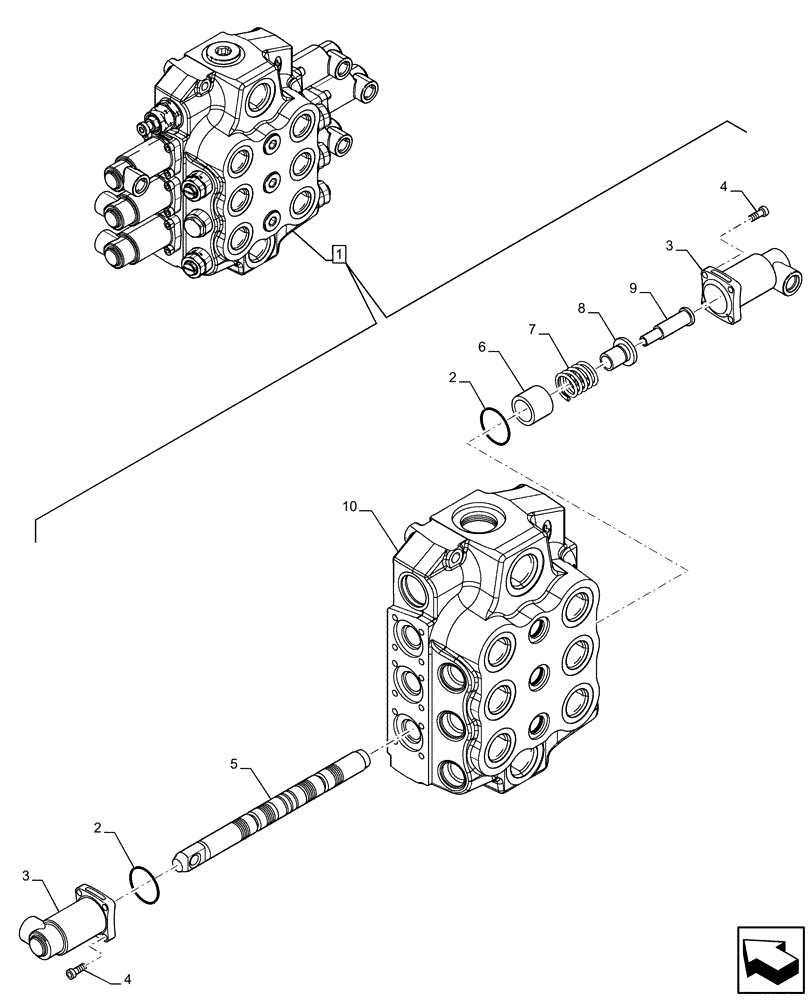

![Схема запчастей Case 21F - (35.359.AG[04]) - DIRECTIONAL CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/5256413.png)
8
1
2
6
3
4
7
10
3
4
9
5
2
№
Артикул
Название
Примечание
Количество
1
47642502
CONTROL VALVE
Directional Control, ASSY, Incl 2 - 10
1шт.
See Valve Directional Control also in Figure 35.359.AG (02), (03), (05)
1шт.
2
47629858
KIT
1шт.
Include also Gaskets in Figure 35.359.AG (02), (03), (05)
1шт.
3
47629886
COVER
4шт.
4
864-5050
HEX SOC SCREW,M5 x 50mm, Cl 8.8
8шт.
5
NSS
NOT SOLD SEPARAT
Shaft, Incl in 1
1шт.
6
NSS
NOT SOLD SEPARAT
Bush, Incl in 1
1шт.
7
NSS
NOT SOLD SEPARAT
Spring, Incl in 1
1шт.
8
NSS
NOT SOLD SEPARAT
Plug, Incl in 1
1шт.
9
NSS
NOT SOLD SEPARAT
Pin, Incl in 1
1шт.
10
NSS
NOT SOLD SEPARAT
Body, Incl in 1
1шт.
Выбрано товаров: 12
