(35.359.AG[01]) - DIRECTIONAL CONTROL VALVE

Запчасти Case 21F (35.359.AG[01]) - DIRECTIONAL CONTROL VALVE (35) - HYDRAULIC SYSTEMS

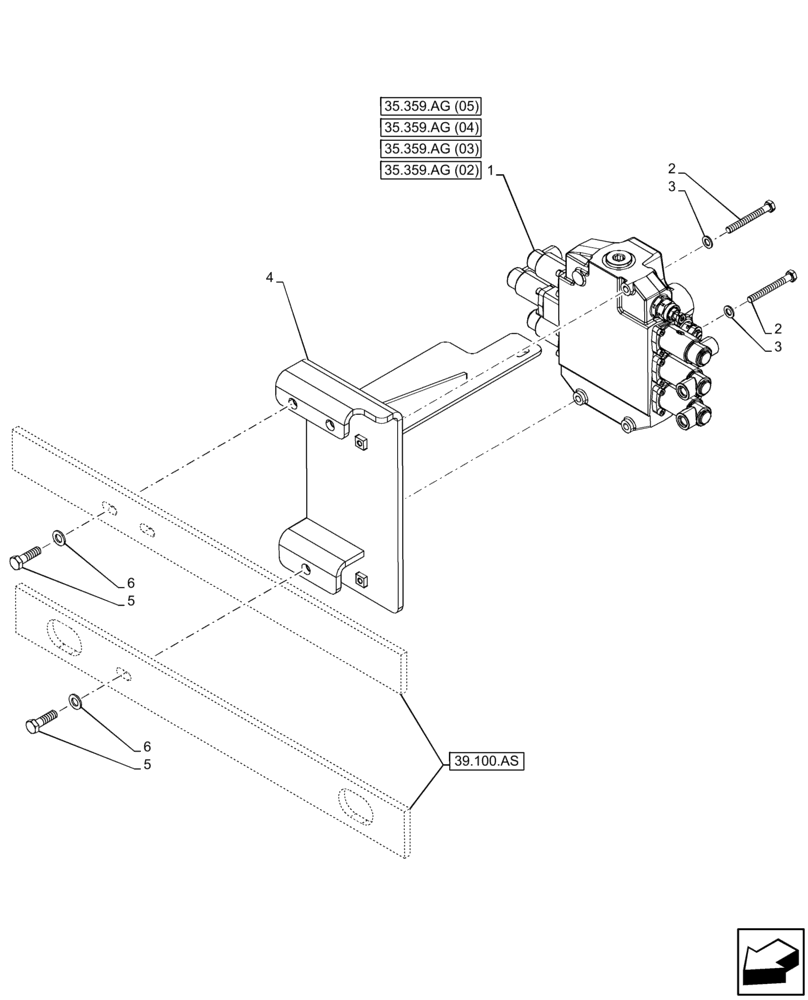

Схема запчастей Case 21F - (35.359.AG[01]) - DIRECTIONAL CONTROL VALVE (35) - HYDRAULIC SYSTEMS
2
1
35.359.ag (02)
35.359.ag (05)
39.100.as
5
4
2
35.359.ag (04)
6
6
3
5
3
35.359.ag (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47642502

CONTROL VALVE

Directional Control, ASSY

1шт.

2

84042348

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

3шт.

3

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

4

47739720

MOUNTING PLATE

1шт.

5

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

3шт.

6

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

Выбрано товаров: 6
