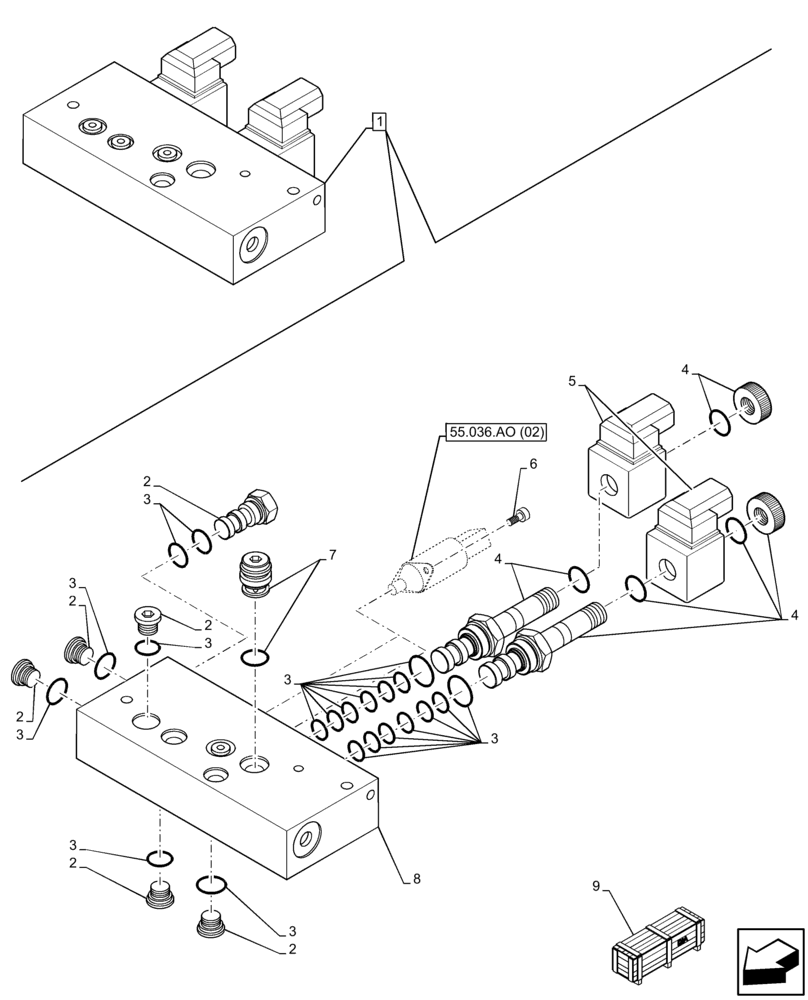

Запчасти Case 21F (35.359.AC[02]) - PILOT VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47443151

HYDRAULIC VALVE

ASSY, Incl 2 - 8

1шт.

2

47738961

KIT

1шт.

3

47738964

KIT

1шт.

4

47738967

SOLENOID VALVE

2шт.

5

47631288

COIL

2шт.

6

87698788

HEX SOC SCREW,M4 x 10mm, Cl 12.9

4шт.

7

47738968

CHECK VALVE

1шт.

8

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

9

47704680

CONSTRUCTION DIA

Hydraulic Standard Provision W50C - 21F Zbar, Incl 1 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

9

47704682

CONSTRUCTION DIA

Hydraulic Standard Provision W50C - W60C - 21F - 121F TC, Incl 1 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

9

47704683

CONSTRUCTION DIA

Hydraulic Standard Provision W60C - 121F Zbar, Incl 1 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

9

47704684

CONSTRUCTION DIA

Hydraulic Standard Provision W70C - 221F Zbar, incl 1 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

9

47704686

CONSTRUCTION DIA

Hydraulic Standard Provision W80C - 321F Zbar, Incl 1 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.
