(35.357.AO) - PILOT VALVE, MANIFOLD VALVE, LINE

Запчасти Case 21F (35.357.AO) - PILOT VALVE, MANIFOLD VALVE, LINE (35) - HYDRAULIC SYSTEMS

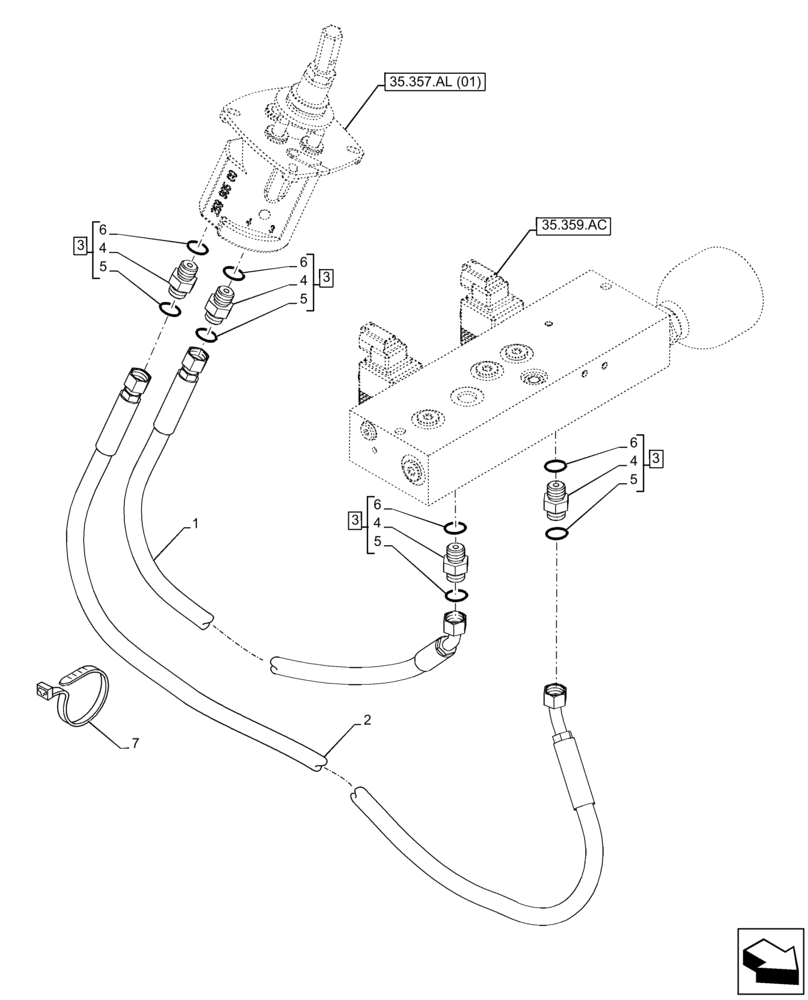

Схема запчастей Case 21F - (35.357.AO) - PILOT VALVE, MANIFOLD VALVE, LINE (35) - HYDRAULIC SYSTEMS
6
6
3
5
6
3
5
4
1
2
5
4
35.357.al (01)
6
3
35.359.ac
5
4
7
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47501123

HYDRAULIC HOSE

Pilot Valve 3 to Manifold

1шт.

2

47501124

HYDRAULIC HOSE

Pilot Valve P to Manifold

1шт.

3

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

ASSY, Incl 4 (Qty 1), 5 (Qty 1), 6 (Qty 1)

4шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

4шт.

5

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

4шт.

6

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

7

4982514

CABLE TIE,188mm L

1шт.

Выбрано товаров: 7
