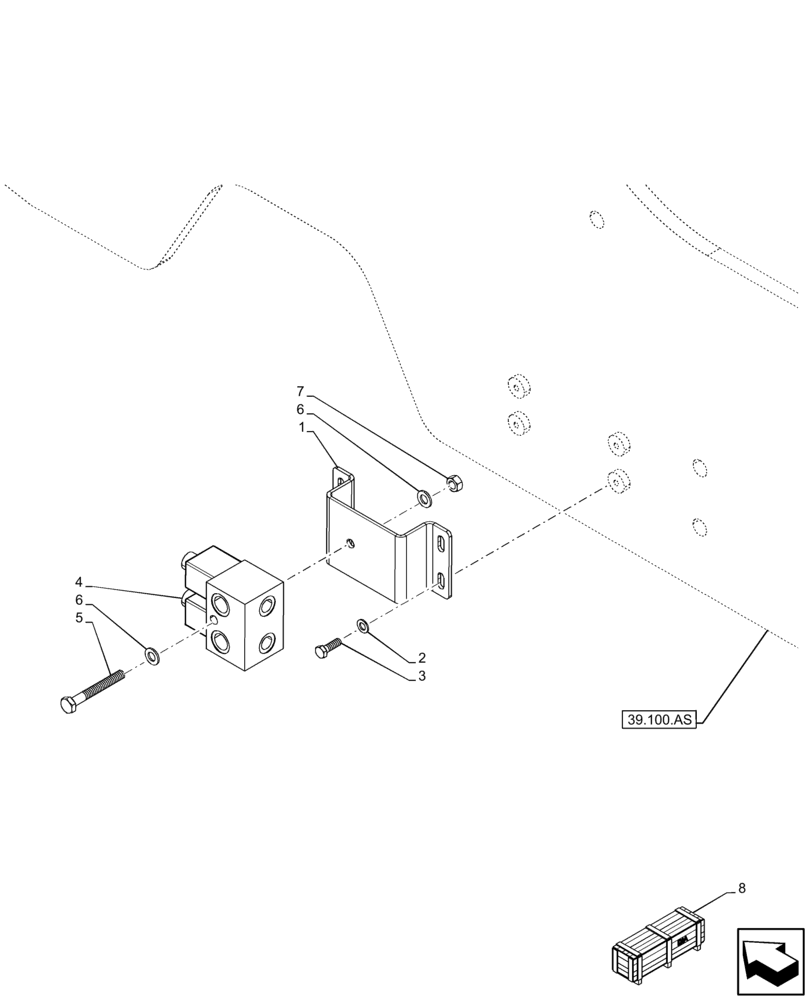

Запчасти Case 21F (35.350.AR) - VAR - 734520 - RIDE CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

47687361

BRACKET

, Years: -19-JAN-15

1шт.

1

47800851

PLATE

, Start Year: 20-JAN-15

1шт.

2

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

3

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

4

87358817

HYDRAULIC VALVE

1шт.

5

43252

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

1шт.

6

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

, Years: -19-JAN-15

2шт.

6

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

, Start Year: 20-JAN-15

1шт.

7

86500689

NUT,M10 x 1.5, Cl 10

, Years: -19-JAN-15

1шт.

8

47700189

CONSTRUCTION DIA

Ride Control W50C, W60C, 21F, 121F TC, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

8

47700206

CONSTRUCTION DIA

Ride Control W50C, W60C, 21F, 121F Z Bar, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

8

47700210

CONSTRUCTION DIA

Ride Control W70C, W80C, 221F, 321F Z Bar, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.
