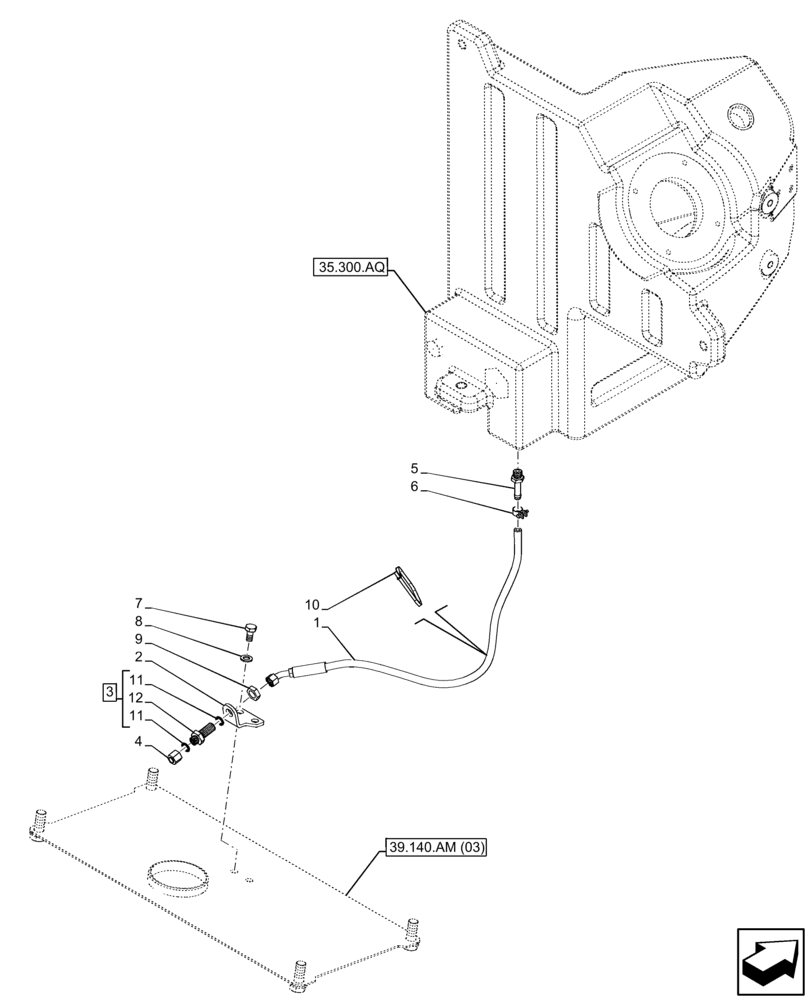

Запчасти Case 21F (35.300.AD[04]) - VAR - 734612 - HYDRAULIC OIL RESERVOIR, DRAIN LINE (35) - HYDRAULIC SYSTEMS

1

47579899

HYDRAULIC HOSE

Drain, Oil

1шт.

2

47579785

BRACKET

1шт.

3

86639059

UNION,9/16"-18 ORFS, Blkd

ASSY, Incl 11, 12

1шт.

4

87668376

CAP,9/16"-18 Inch THD

1шт.

5

87360975

HYD CONNECTOR,3/8" Barb x 9/16"-18 x 2 3/16" L

1шт.

6

10186790

HOSE CLIP,13mm - 15mm

1шт.

7

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

2шт.

8

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

9

86639063

BHD LOCK NUT,9/16"-18, ORFS Blkhd

1шт.

10

4982514

CABLE TIE,188mm L

Nylon, Black

1шт.

11

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

12

NSS

NOT SOLD SEPARAT

UNION, Incl in 3

1шт.
