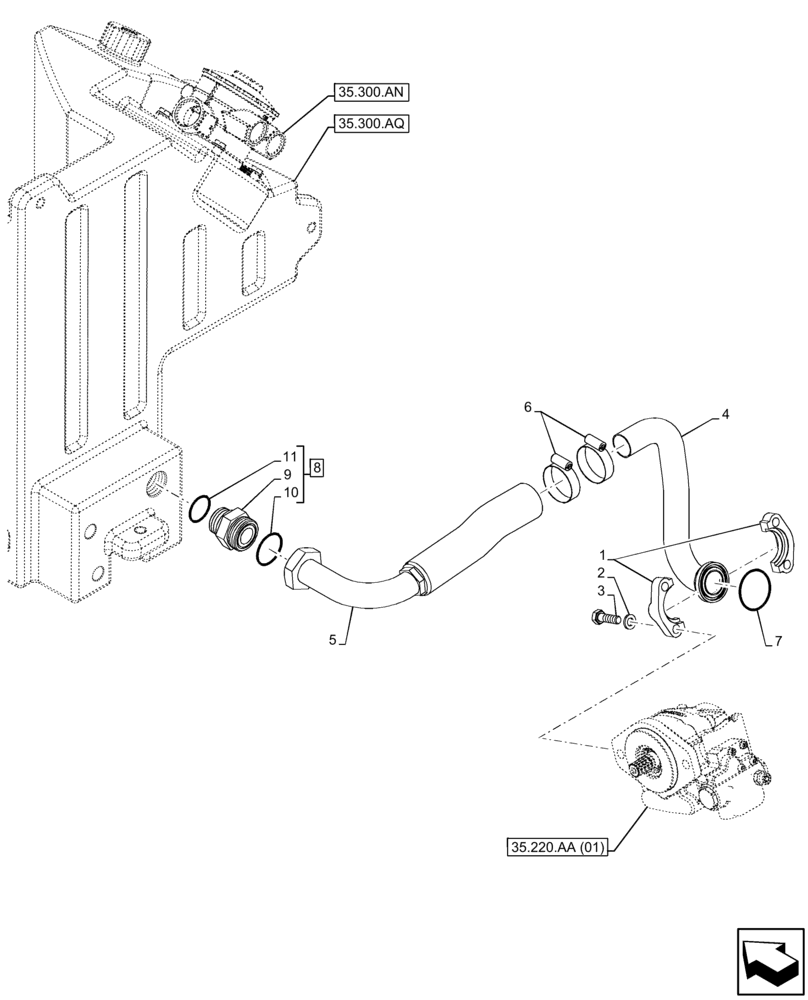

Запчасти Case 21F (35.220.AG[01]) - AUXILIARY HYDRAULIC, PUMP, TANK, LINE - END DATE 7 APRIL 2015 (35) - HYDRAULIC SYSTEMS

1

70921118

CLAMP,Half

2шт.

2

10520021

WASHER,12.2mm ID x 22mm OD x 3mm Thk

4шт.

3

11112831

SCREW,Hex, M12 x 40mm, Cl 10.9, Full Thd

4шт.

4

47510415

HYD TUBE

Oil Tank Line to Gear Pump

1шт.

5

47510416

HYDRAULIC HOSE

Oil Tank to Gear Pump Line

1шт.

6

79083846

HOSE CLAMP,M40-60

2шт.

7

272380

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

8

9840325

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

ASSY, Incl 9 -11

1шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

1шт.

10

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

11

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.
