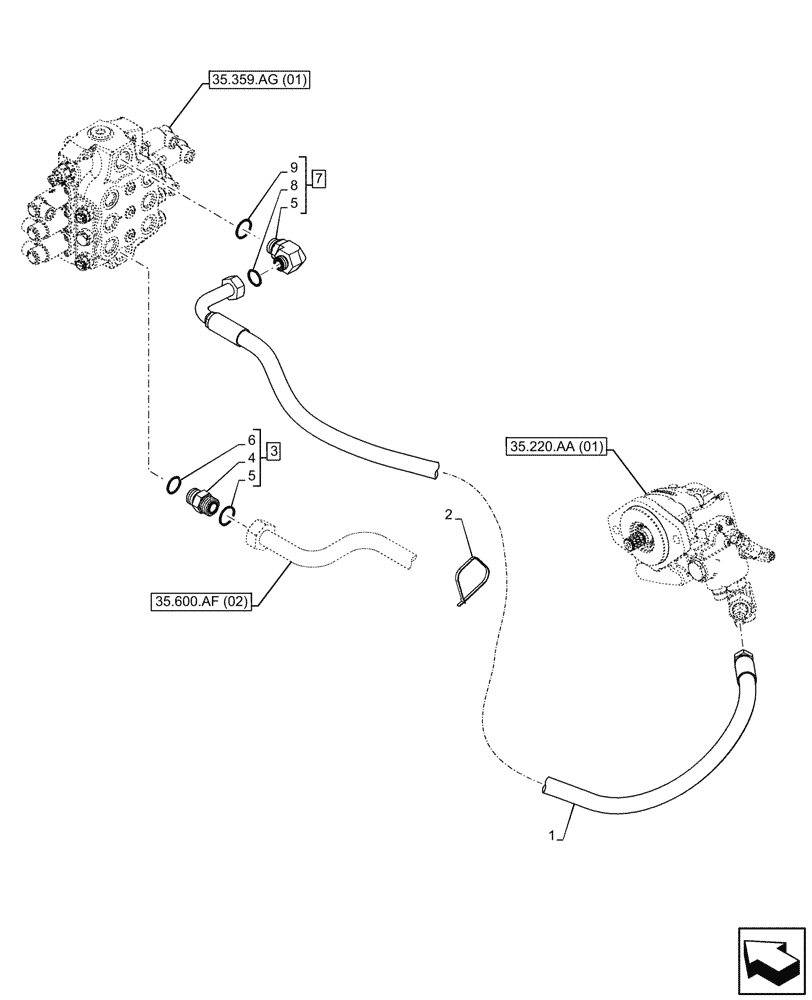

Запчасти Case 21F (35.220.AD[01A]) - AUXILIARY HYDRAULIC, PUMP, CONTROL VALVE, LINE - BEGIN DATE 8 APRIL 2015 (35) - HYDRAULIC SYSTEMS

1

47786736

HYDRAULIC HOSE

Main Valve T to Gear Pump

1шт.

2

4982514

CABLE TIE,188mm L

1шт.

3

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

ASSY, Incl 5 (Qty 1), 8, 9

1шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

5

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

6

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

7

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

ASSY, Incl 5 (Qty 1), 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

1шт.

9

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
