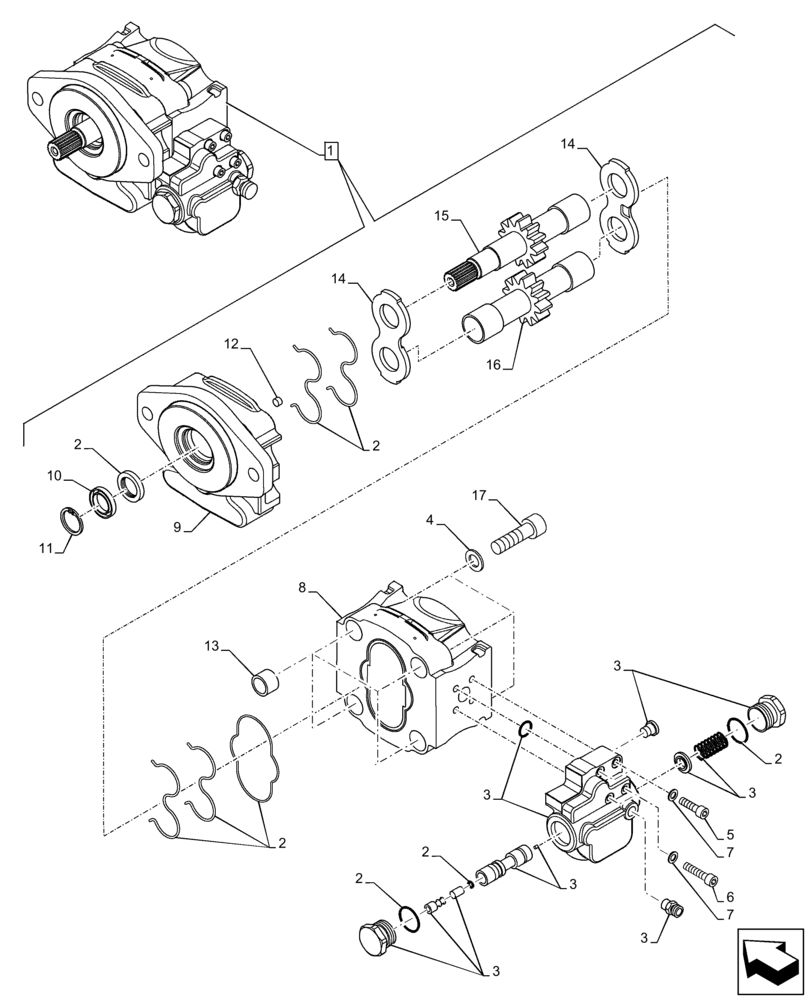

Запчасти Case 21F (35.220.AA[02]) - VAR - 402045, 732001, 732002, 732005, 732006, 734647, 734648, 734651, 734652 - HYDRAULIC PUMP, GEAR, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47479545

HYDRAULIC PUMP

Gear, ASSY, Incl 2 - 17

1шт.

2

47626138

KIT

1шт.

3

47626140

KIT

1шт.

4

47628800

WASHER,15mm ID x 22mm OD x 2.5mm Thk

4шт.

5

14441724

SCREW,Flat Csk Hd, M6 x 35mm, Cl 8.8

2шт.

6

14305921

HEX SOC SCREW,M6 x 45mm, Cl 8.8

2шт.

7

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

4шт.

8

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Bush, Incl in 1

4шт.

14

NSS

NOT SOLD SEPARAT

Support, Incl in 1

2шт.

15

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

17

47628834

HEX SOC SCREW

4шт.
