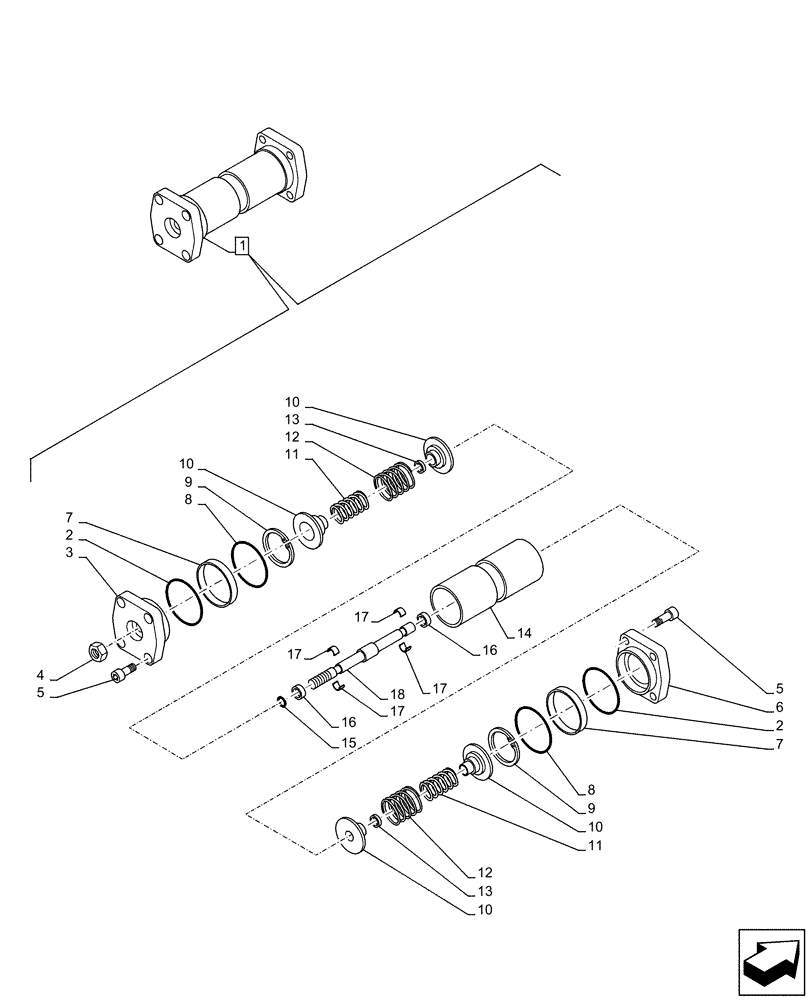

Запчасти Case 21F (35.106.AD[10]) - HYDROSTATIC PUMP, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47628180

CONTROL

ASSY, Incl 2 - 18, Serial Range: -NEHP00254

1шт.

2

47628182

KIT

1шт.

Include also Gaskets in Figure 35.106.AD (03), (04), (05), (06), (07), (08), (09)

1шт.

3

47628184

COVER

, Serial Range: -NEHP00254

1шт.

4

399555

THIN NUT,Thin, M12 x 1.5, Cl 04

1шт.

5

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

, Serial Range: -NEHP00254

8шт.

6

47628185

COVER

, Serial Range: -NEHP00254

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

2шт.

8

NSS

NOT SOLD SEPARAT

O-ring, Incl in 1

2шт.

9

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

2шт.

10

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

4шт.

11

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

2шт.

12

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

2шт.

13

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

2шт.

14

NSS

NOT SOLD SEPARAT

Cylinder, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

2шт.

17

NSS

NOT SOLD SEPARAT

Half-Ring, Incl in 1

4шт.

18

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.
