Запчасти Case 21F (35.106.AD[07]) - HYDROSTATIC PUMP, COMPONENTS (35) - HYDRAULIC SYSTEMS

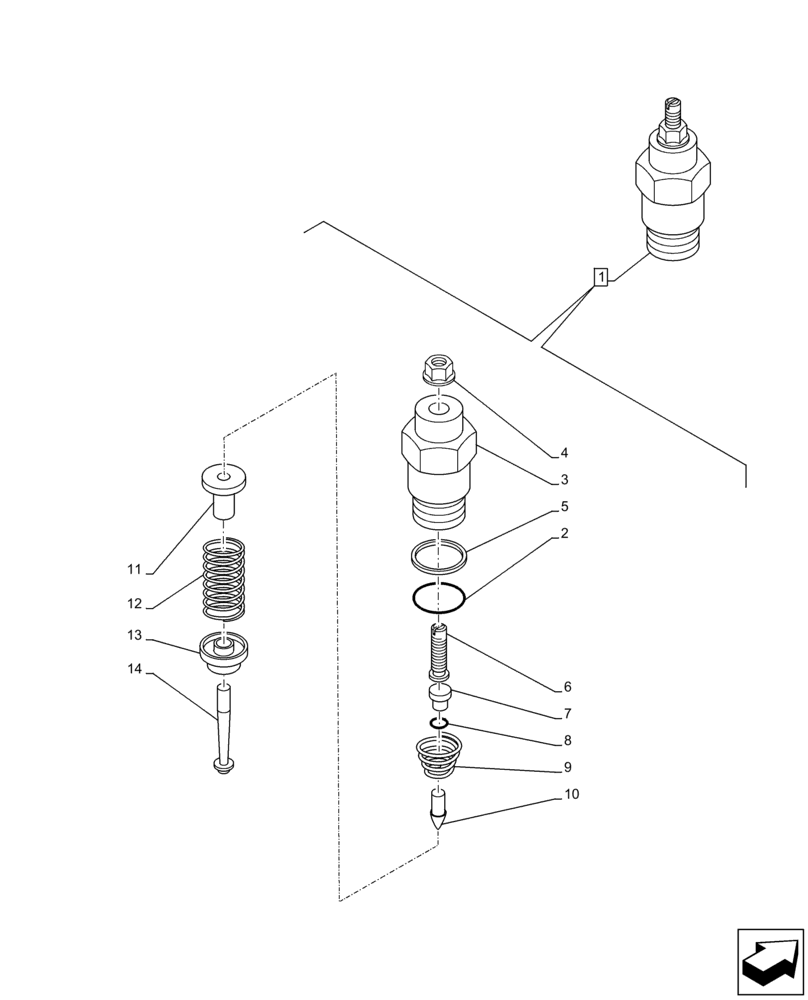

Схема запчастей Case 21F - (35.106.AD[07]) - HYDROSTATIC PUMP, COMPONENTS (35) - HYDRAULIC SYSTEMS
12
2
5
14
7
1
11
8
6
13
9
4
3
10

Артикул

Название

Примечание

Количество

1

47628177

VALVE PRESSURE RELIE

ASSY, Incl 2 - 14

1шт.

2

47628182

KIT

1шт.

Include also Gaskets in Figure 35.106.AD (03), (04), (05), (06), (08), (09), (10)

1шт.

3

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Nut, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

Выбрано товаров: 15
