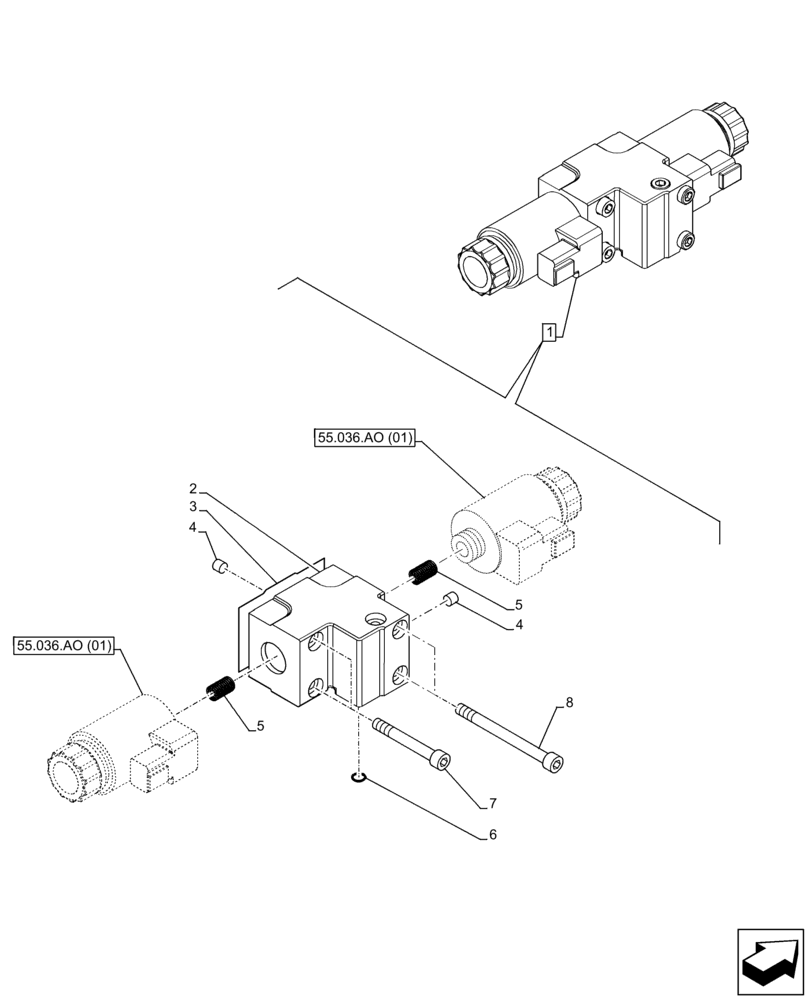

Запчасти Case 21F (35.106.AD[03]) - HYDROSTATIC PUMP, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47628173

VALVE

4/3-Way, ASSY, Incl 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

3

47628183

GASKET

1шт.

4

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

2шт.

5

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

2шт.

6

47628182

KIT

1шт.

Include also Gaskets in Figure 35.106.AD (04), (05), (06), (07), (08), (09), (10)

1шт.

7

14305921

HEX SOC SCREW,M6 x 45mm, Cl 8.8

3шт.

8

14303921

HEX SOC SCREW,M6 x 70mm, Cl 8.8

2шт.
