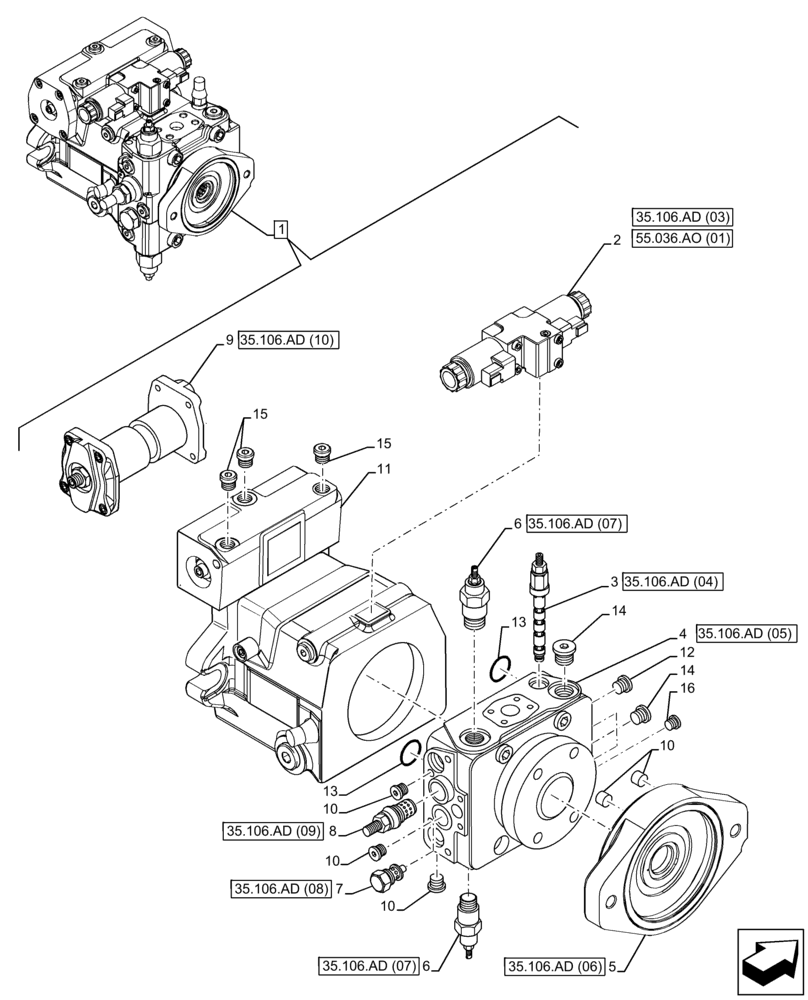

Запчасти Case 21F (35.106.AD[02]) - HYDROSTATIC PUMP, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47585049

HYDRAULIC PUMP

ASSY, Incl 2 - 16

1шт.

2

47628173

VALVE

4/3-Way, ASSY

1шт.

3

47628174

VALVE

Pressure, ASSY

1шт.

4

47628175

PLATE

ASSY, Serial Range: -NEHP00254

1шт.

5

47628176

PUMP

Gear Internal, ASSY

1шт.

6

47628177

VALVE PRESSURE RELIE

ASSY

2шт.

7

47628178

VALVE PRESSURE RELIE

ASSY

1шт.

8

47628179

CONTROL VALVE

Cartridge, ASSY

1шт.

9

47628180

CONTROL

ASSY, Serial Range: -NEHP00254

1шт.

10

NSS

NOT SOLD SEPARAT

Seal Kit, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

12

1468962

PLUG

1шт.

13

47628182

KIT

Front Pump

1шт.

14

970659

PLUG,M12 x 1.5

5шт.

15

1403736

DRAIN PLUG,M8 x 1

3шт.

16

1415651

KEY

4шт.
