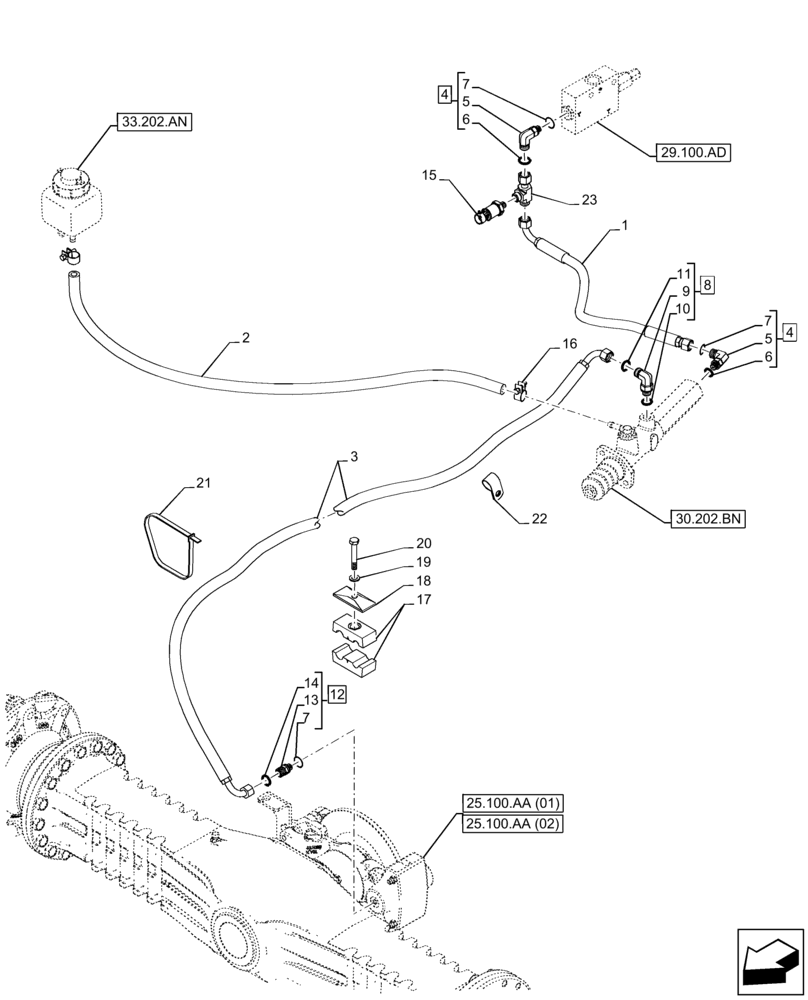

Запчасти Case 21F (33.202.AP) - BRAKE LINE (33) - BRAKES & CONTROLS

1

47491810

HYDRAULIC HOSE

Cylinder Brake to Inching Valve

1шт.

2

47512603

HYDRAULIC HOSE

Cylinder Brake to Oil Tank

1шт.

3

47512619

HYDRAULIC HOSE

Cylinder Brake to Front Axle

1шт.

4

5185047

ELBOW,90 Deg, 9/16-18 ORFS x M10 x 1 ORB

ASSY, Incl 5 (Qty 1), 6 (Qty 1), 7 (Qty 1)

2шт.

5

NSS

NOT SOLD SEPARAT

Elbow, Incl in 4

2шт.

6

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

2шт.

7

82016610

SEAL,8.4mm ID x 11.9mm OD x 1mm Thk

3шт.

8

47630470

90 ELBOW

ASSY, Incl 9 - 11, Serial Range: -NGHP00035

1шт.

8

47907749

BANJO FITTING

, Start Serial: NGHP00036

1шт.

9

NSS

NOT SOLD SEPARAT

Elbow, Incl in 8

1шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

82019391

SEAL,9.8mm ID x 14.4mm OD x 1mm Thk

1шт.

12

82016839

HYD CONNECTOR,Straight, M10 x 1 ORFS, 9/16"-18" ORB

ASSY, Incl 7 (Qty 1), 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

Connector, Incl in 12

1шт.

14

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

15

84597744

SENSOR

Oil Pressure

1шт.

16

10186590

CLAMP,11mm - 13mm

2шт.

17

87000139

CLAMP

1шт.

18

900529

PLATE

1шт.

19

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

20

86625003

BOLT,Hex, M8 x 50mm, Cl 10.9

1шт.

21

4982514

CABLE TIE,188mm L

1шт.

22

87010656

CLAMP,17.5mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

23

8602743

TEE

1шт.
