(25.102.AC[01]) - VAR - 734510, 734511 - FRONT AXLE, DIFFERENTIAL, CARRIER

Запчасти Case 21F (25.102.AC[01]) - VAR - 734510, 734511 - FRONT AXLE, DIFFERENTIAL, CARRIER (25) - FRONT AXLE SYSTEM

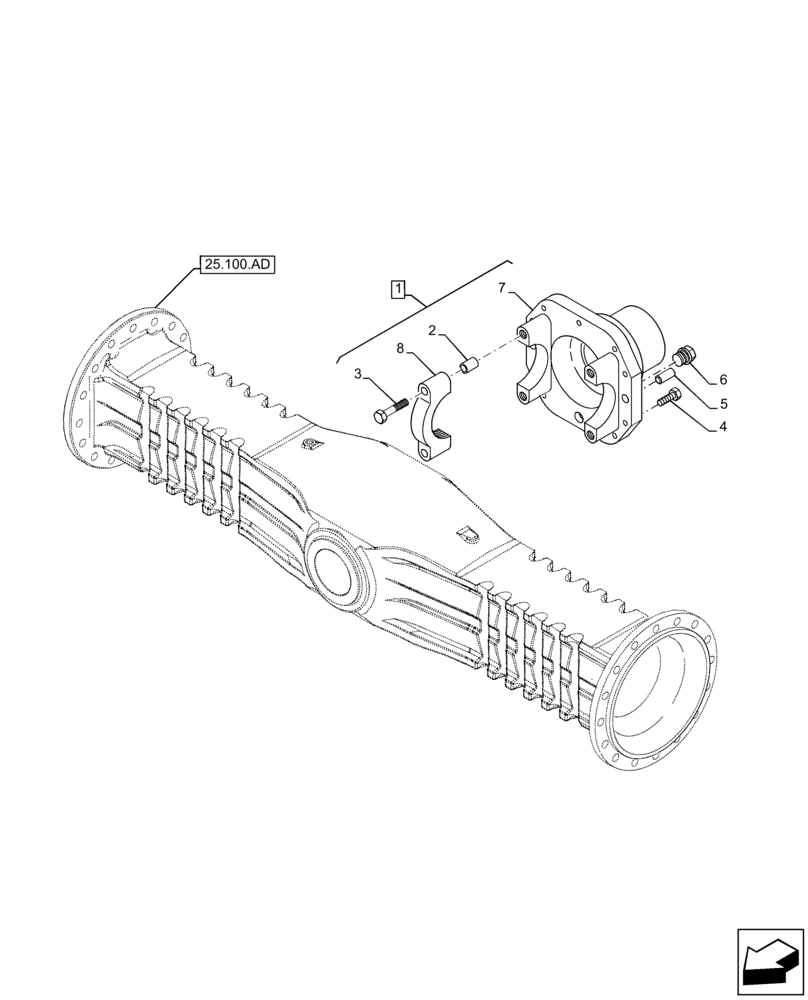

Схема запчастей Case 21F - (25.102.AC[01]) - VAR - 734510, 734511 - FRONT AXLE, DIFFERENTIAL, CARRIER (25) - FRONT AXLE SYSTEM
7
3
1
8
4
2
5
6
25.100.ad
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6914424

BEARING CARRIER

ASSY, Incl 2, 3, 7, 8

1шт.

2

6914426

SLEEVE

18 x 15 x 12mm

4шт.

3

6914425

SCREW

M14 x 2 x 75mm

4шт.

4

6914423

SCREW

M12 x 33mm

10шт.

5

6914427

PLUG

M22 x 1.5mm

1шт.

6

6914416

PIN,18mm OD x 38mm L

2шт.

7

NSS

NOT SOLD SEPARAT

Differential Housing, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Bearing Cup, Incl in 1

1шт.
