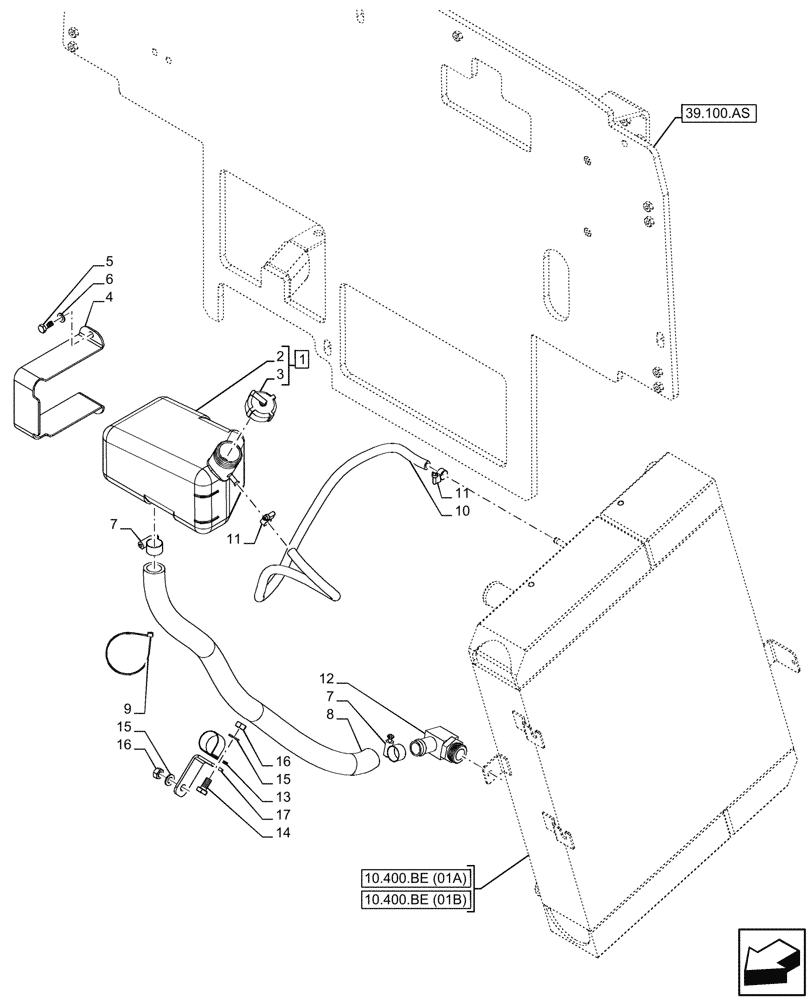

Запчасти Case 21F (10.400.BH) - EXPANSION TANK (10) - ENGINE

1

84136463

TANK

ASSY, Incl 2, 3

1шт.

2

85803018

PAN

1шт.

3

85803019

RADIATOR CAP

1шт.

4

47444143

BRACKET

Expansion Tank

1шт.

5

43233

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd, Cl 10.9

2шт.

6

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

7

87482165

HOSE CLAMP,1" - 1.75", Worm Gear

D1/1.75mm, Years: -28-FEB-17

2шт.

7

85803013

HOSE CLAMP

, Start Year: 01-MAR-17

3шт.

8

47444144

FLEXIBLE HOSE

Expansion Tank to Radiator

1шт.

9

14560287

CABLE TIE,207.00mm L

1шт.

10

47469196

FLEXIBLE HOSE

Vent Line

1шт.

11

925895

CLIP

D10/16mm

2шт.

12

87393628

ADAPTER,1" Hose Barb x 1-5/16" - 12 ORB

1 to 1-5/16-12, Years: -28-FEB-17

1шт.

12

87029968

HYD CONNECTOR

, Start Year: 01-MAR-17

1шт.

13

86639002

CLAMP,34.9mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

14

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

1шт.

15

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

16

86500689

NUT,M10 x 1.5, Cl 10

2шт.

17

47620568

BRACKET

1шт.
