Запчасти Case 121F (10.001.AK) - ENGINE, SUPPORT (10) - ENGINE

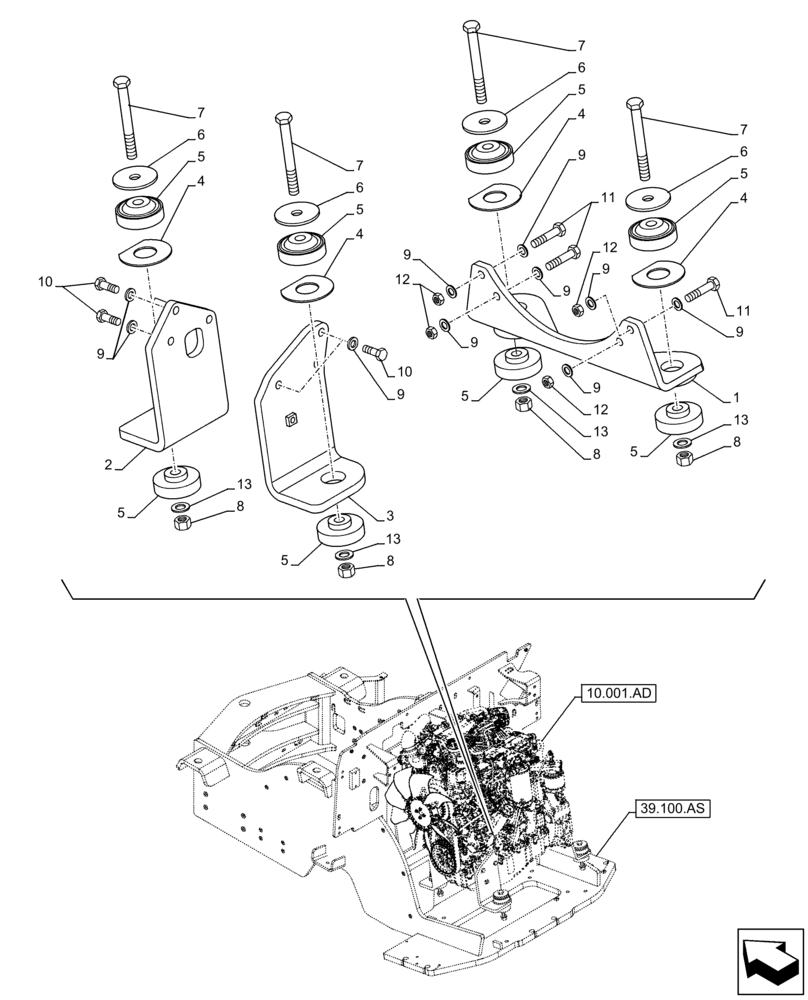

Схема запчастей Case 121F - (10.001.AK) - ENGINE, SUPPORT (10) - ENGINE
4
2
11
5
9
5
6
10
6
13
13
13
39.100.as
6
9
11
5
5
9
6
4
9
12
9
12
9
8
10.001.ad
9
7
9
8
5
5
5
5
7
4
8
12
4
3
7
7
8
10
13
9
1

Артикул

Название

Примечание

Количество

1

47447431

SUPPORT

Flywheel Side

1шт.

2

47439133

SUPPORT

Fan Side

1шт.

3

47439198

SUPPORT

Fan Side

1шт.

4

84496674

MOUNT

Engine Doubler, Years: -16-FEB-15

4шт.

5

84201266

ISOLATOR,16mm ID x 80mm OD x 41.5mm Thk

ISO Engine

8шт.

6

87630175

WASHER,0.66" ID x 3" OD x 0.18" Thk

, Years: -16-FEB-15

4шт.

6

87630175

WASHER,0.66" ID x 3" OD x 0.18" Thk

, Start Year: 17-FEB-15

8шт.

7

1791248

SCREW,Hex, M16 x 140mm, Cl 10.9

M16 x 140 10.9 ZND

4шт.

8

251843

LOCK NUT,M16 x 2, Cl 10

4шт.

9

10520021

WASHER,12.2mm ID x 22mm OD x 3mm Thk

14шт.

10

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

6шт.

11

11113431

SCREW,Hex, M12 x 60mm, Cl 10.9

4шт.

12

337475

NUT,M12, Cl 10

4шт.

13

87530645

WASHER,17.5mm ID x 30mm OD x 3mm Thk

M 17 x 30 x 3mm CST PLN

4шт.

Выбрано товаров: 14
