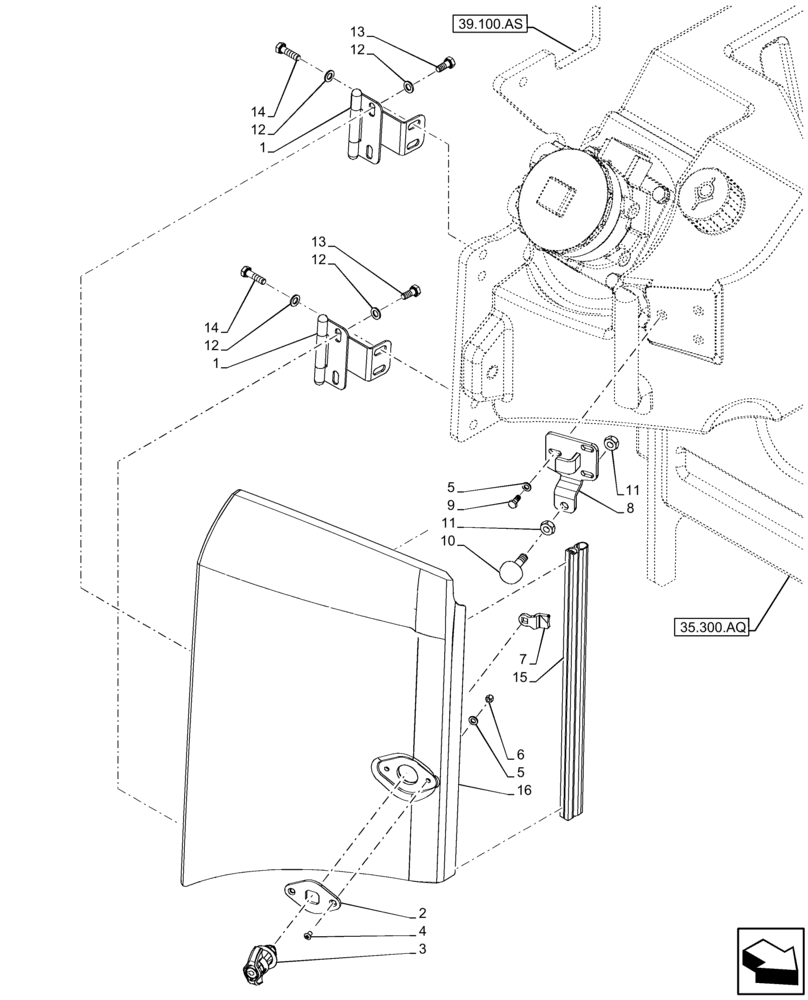

Запчасти Case 121F (90.105.BC) - OIL TANK SIDE ACCESS SHIELD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47587592

HINGE

2шт.

2

87628364

PLATE

1шт.

3

47590865

LATCH

1шт.

4

13311214

SCREW,Pozidriv Oval Hd, Csk, M5 x 20mm, Cl 5.8, Full Thd

2шт.

5

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

5шт.

6

12574121

LOCK NUT,Hex, M5 x 0.8, Cl 10

2шт.

7

87723154

PAWL

1шт.

8

47481428

HINGE

1шт.

9

10902231

SCREW,Hex, M6 x 16mm, Cl 10.9

3шт.

10

79037282

PAD

1шт.

11

12164721

NUT,M10 x 1.25, Cl 10

2шт.

12

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

13

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

14

16043831

SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

15

47603105

SEAL

1шт.

16

47487485

SIDE PANEL

1шт.
