Запчасти Case 121F (55.510.BM[02]) - VAR - 732005, 732006, 734588, 734651, 734652 - SOCKET (55) - ELECTRICAL SYSTEMS

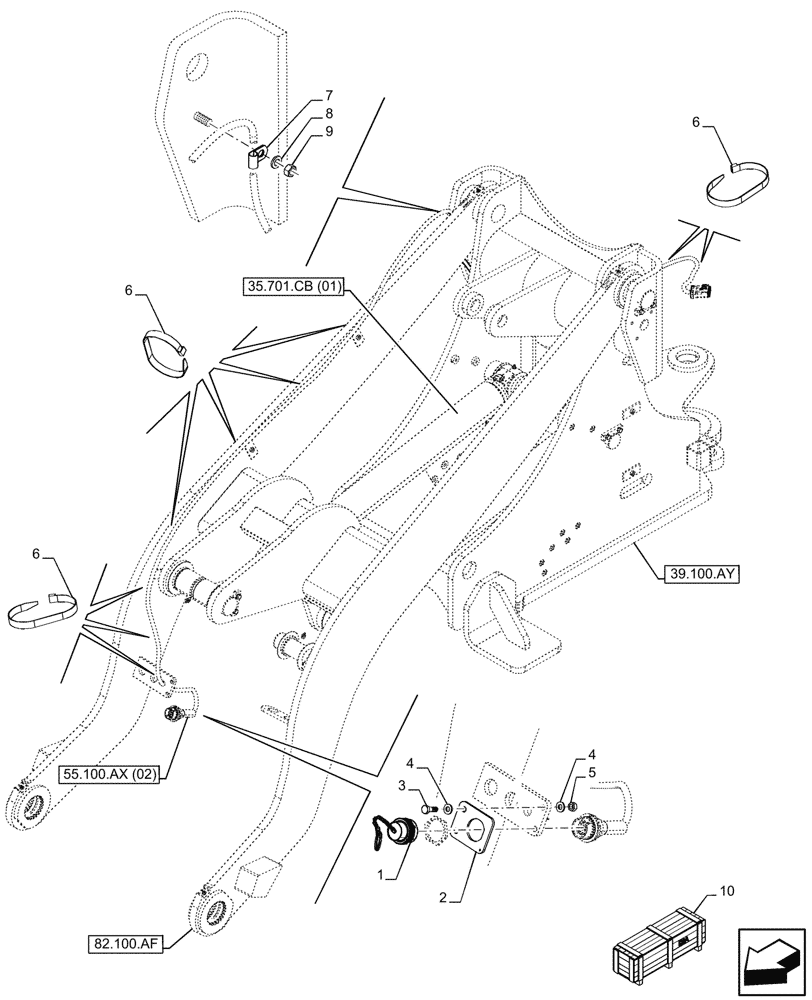

Схема запчастей Case 121F - (55.510.BM[02]) - VAR - 732005, 732006, 734588, 734651, 734652 - SOCKET (55) - ELECTRICAL SYSTEMS
82.100.af
1
7
2
4
6
8
4
6
5
9
10
6
3
55.100.ax (02)
35.701.cb (01)
39.100.ay

Артикул

Название

Примечание

Количество

1

86621909

CAP

1шт.

2

47684818

PLATE

1шт.

3

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

2шт.

4

10519611

WASHER,8.15mm ID x 17mm OD x 2mm Thk

8.15 x 17 x 2

4шт.

5

43362

NUT,M8 x 1.25, Cl 10

2шт.

6

435437A1

CABLE TIE,3/16" x 7 1/4"

10шт.

7

86632595

CLAMP,12.7mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

8

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

9

86500689

NUT,M10 x 1.5, Cl 10

1шт.

10

47724485

CONSTRUCTION DIA

Auxiliary Front, Electrical, Incl 1 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

Выбрано товаров: 11
