Запчасти Case 121F (55.404.BS[04]) - VAR - 734663 - LED WORK LAMP (55) - ELECTRICAL SYSTEMS

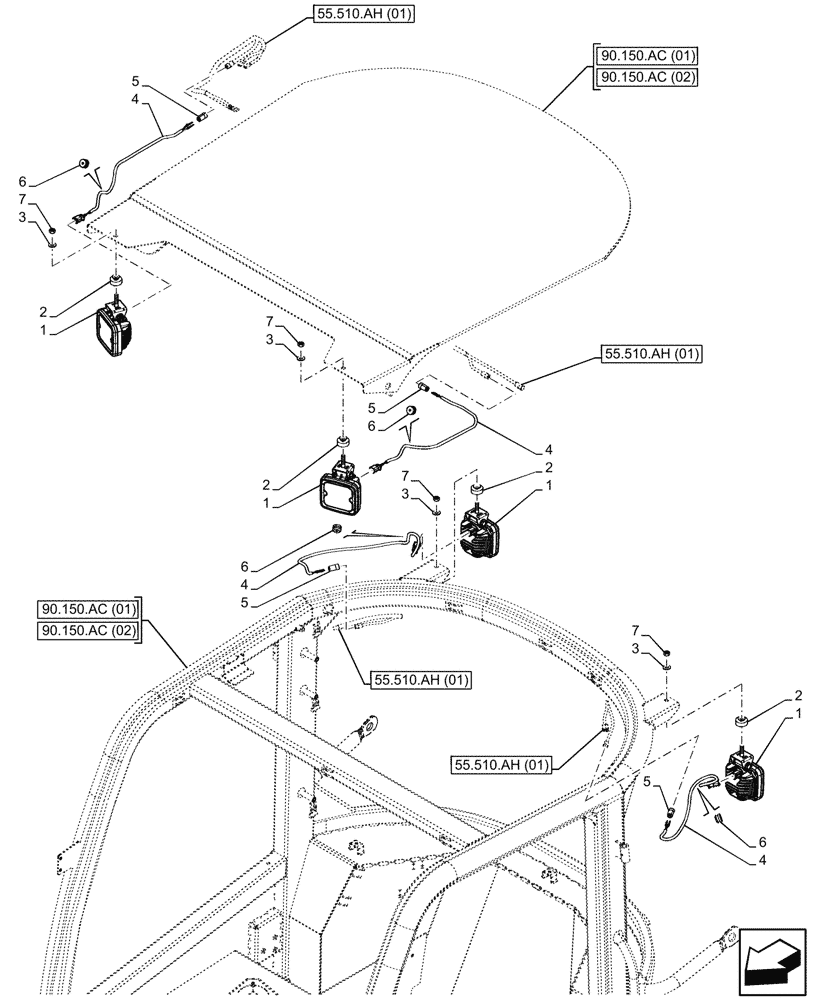

Схема запчастей Case 121F - (55.404.BS[04]) - VAR - 734663 - LED WORK LAMP (55) - ELECTRICAL SYSTEMS
90.150.ac (02)
5
2
7
3
6
7
4
1
4
7
5
4
7
1
6
2
6
4
1
6
5
2
2
1
3
3
3
5
90.150.ac (01)
90.150.ac (01)
55.510.ah (01)
55.510.ah (01)
55.510.ah (01)
55.510.ah (01)
90.150.ac (02)

Артикул

Название

Примечание

Количество

1

47818991

WORK LAMP

Led, 2680lm 40W, Square, ASSY, Incl 7

4шт.

2

85818943

SPACER,11mm ID x 30mm OD x 11mm L

4шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

4

47942111

JUMPER

Work Lights

4шт.

5

87695376

ELEC CONNECTOR

4шт.

6

47617381

GROMMET

4шт.

7

NSS

NOT SOLD SEPARAT

Nut, Incl in 1

4шт.

Выбрано товаров: 7
