(50.200.CA) - VAR - 734506 - AIR CONDITIONING, EVAPORATOR, COMPONENTS

Запчасти Case 121F (50.200.CA) - VAR - 734506 - AIR CONDITIONING, EVAPORATOR, COMPONENTS (50) - CAB CLIMATE CONTROL

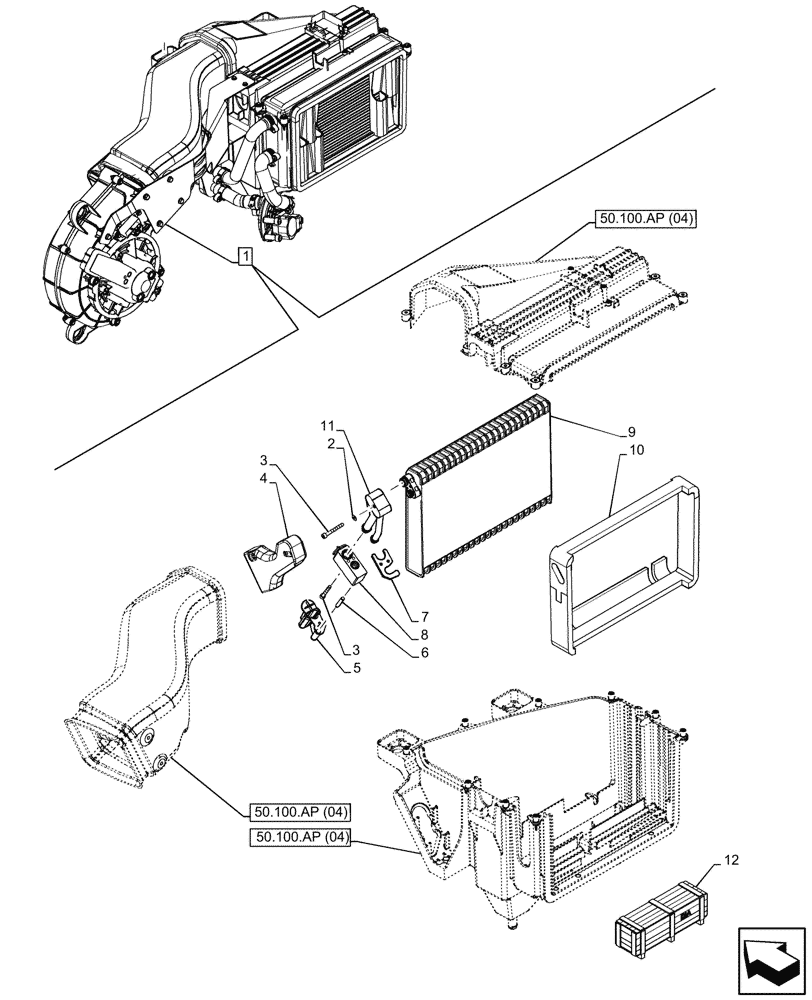

Схема запчастей Case 121F - (50.200.CA) - VAR - 734506 - AIR CONDITIONING, EVAPORATOR, COMPONENTS (50) - CAB CLIMATE CONTROL
50.100.ap (04)
2
6
12
7
3
3
11
8
5
4
1
10
9
50.100.ap (04)
50.100.ap (04)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84593881

AIR CONDITIONER

ASSY, Incl 2 - 11

1шт.

2

12601170

LOCK WASHER

2шт.

3

14358824

HEX SOC SCREW,M5 x 40mm, Cl 8.8, Full Thd

4шт.

4

48064352

GASKET

1шт.

5

NSS

NOT SOLD SEPARAT

1шт.

6

48064349

BOLT

1шт.

7

48064341

BRACKET

1шт.

8

48064344

VALVE

1шт.

9

48064334

EVAPORATOR

1шт.

10

48064336

GASKET

1шт.

11

48064337

PIPE

1шт.

12

47731629

KIT

Air Conditioner and Heater W50C - W60C, 21F - 121F, Incl 1 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

12

47731630

KIT

Air Conditioner and Heater W70C - W80C, 221F - 321F, Incl 1 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.
