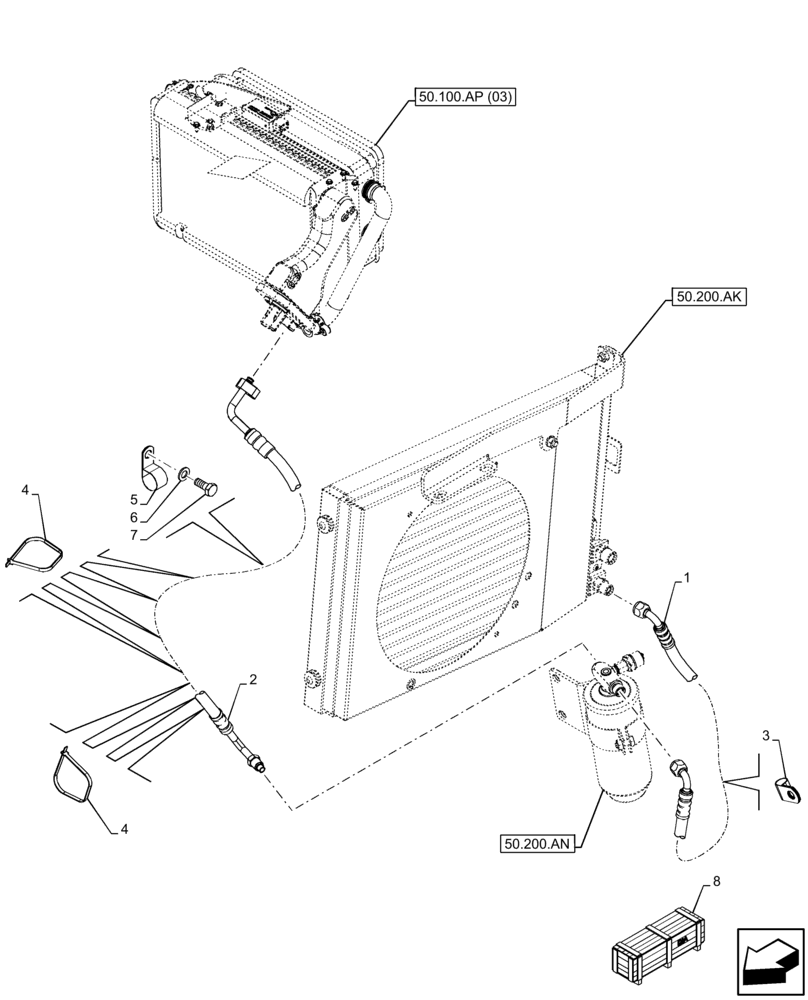

Запчасти Case 121F (50.200.BB) - VAR - 734506 - AIR CONDITIONER, CONDENSER, LINE (50) - CAB CLIMATE CONTROL

1

47619339

A/C HOSE

Condenser to Dryer

1шт.

2

47432237

A/C HOSE

Dryer to Cab

1шт.

3

86639005

CLAMP,15.9mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

4

4982514

CABLE TIE,188mm L

7шт.

5

85802890

CLAMP,28mm, Coat, 12.5mm Bolt Hole, P Type

1шт.

6

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

7

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

1шт.

8

47731629

KIT

Air Conditioner and Heater W50C - W60C, 21F - 121F, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.
