(50.100.AP[03]) - VAR - 734506 - AIR CONDITIONER, UNIT

Запчасти Case 121F (50.100.AP[03]) - VAR - 734506 - AIR CONDITIONER, UNIT (50) - CAB CLIMATE CONTROL

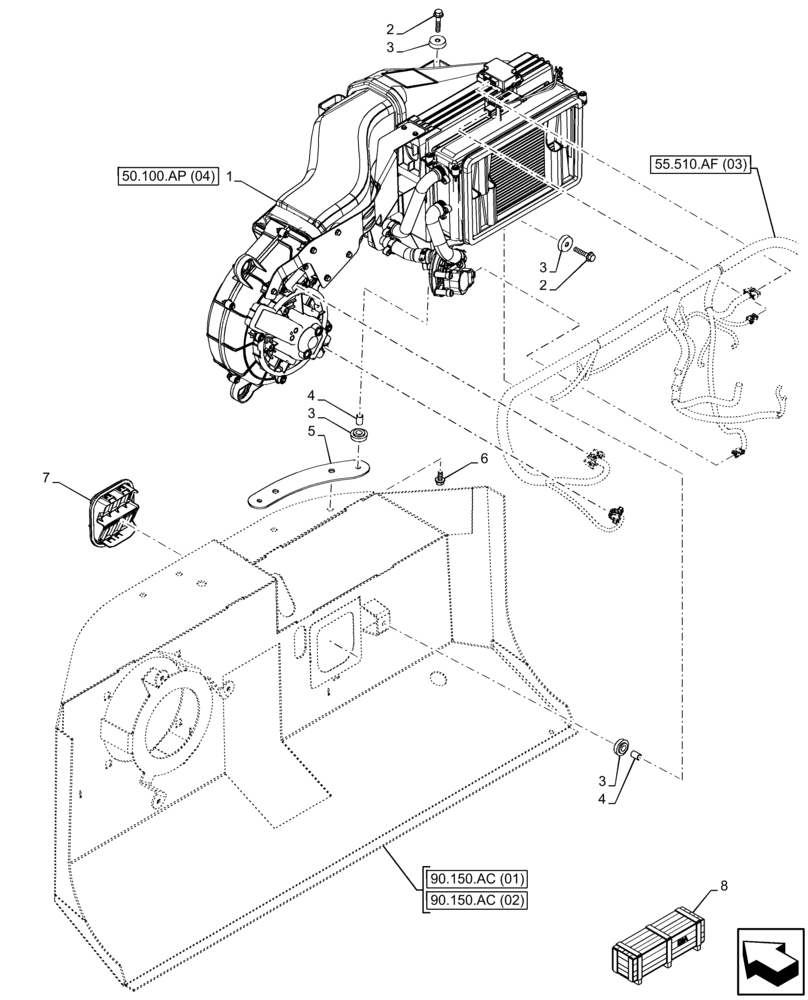

Схема запчастей Case 121F - (50.100.AP[03]) - VAR - 734506 - AIR CONDITIONER, UNIT (50) - CAB CLIMATE CONTROL
7
3
1
50.100.ap (04)
3
90.150.ac (01)
8
55.510.af (03)
4
3
3
2
6
4
5
90.150.ac (02)
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84593881

AIR CONDITIONER

ASSY

1шт.

See Air Conditioner Components also in Figure 55.050.AS

1шт.

2

16286324

BOLT,Hex, M6 x 30mm, Cl 8.8

3шт.

3

5192101

BLOCK

6шт.

4

5192100

SPACER

3шт.

5

47473653

BRACKET

1шт.

6

16296924

FLANGE BOLT,Hvy Hex, M6 x 14mm, Cl 8.8, Full Thd

2шт.

7

47357534

STD EXHAUST VALVE

1шт.

8

47731629

KIT

Air Conditioner and Heater W50C - W60C, 21F - 121F, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

8

47731630

KIT

Air Conditioner and Heater W70C - W80C, 221F - 321F, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.
