(35.525.AA[01]) - VAR - 734637 - AUXILIARY HYDRAULIC, LINES

Запчасти Case 121F (35.525.AA[01]) - VAR - 734637 - AUXILIARY HYDRAULIC, LINES (35) - HYDRAULIC SYSTEMS

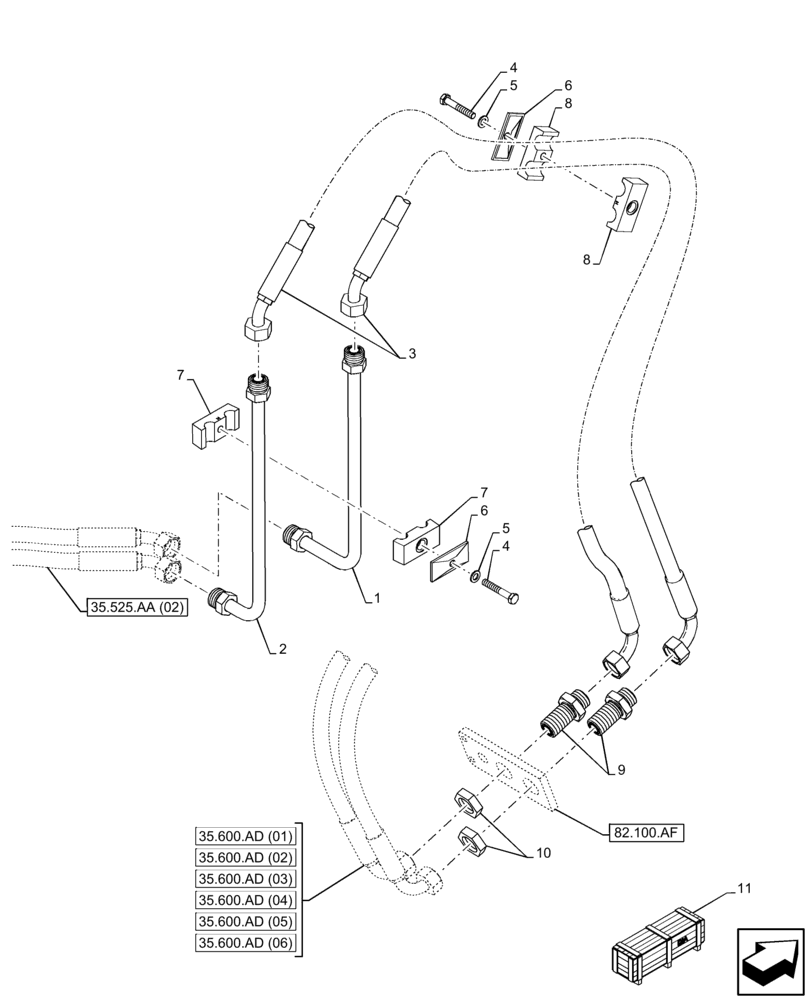

Схема запчастей Case 121F - (35.525.AA[01]) - VAR - 734637 - AUXILIARY HYDRAULIC, LINES (35) - HYDRAULIC SYSTEMS
10
82.100.af
2
35.600.ad (06)
9
8
5
35.600.ad (05)
7
1
8
35.600.ad (03)
11
35.600.ad (04)
3
7
5
6
6
35.600.ad (01)
4
35.600.ad (02)
4
35.525.aa (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47613944

HYD TUBE

3RD Function

1шт.

2

47613945

HYD TUBE

3RD Function

1шт.

3

47463976

HYDRAULIC HOSE

3RD Function

2шт.

4

86625003

BOLT,Hex, M8 x 50mm, Cl 10.9

5шт.

5

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

6

900529

PLATE

5шт.

7

87000921

HOSE CLAMP

2шт.

8

1570971

CLAMP

3шт.

9

76088778

UNION

2шт.

10

86639085

BHD LOCK NUT,1"-14, Bulkhead

2шт.

11

47704683

CONSTRUCTION DIA

Hydraulic Standard Provision W60C, 121F Z Bar, Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT PIN Is Shown

1шт.
