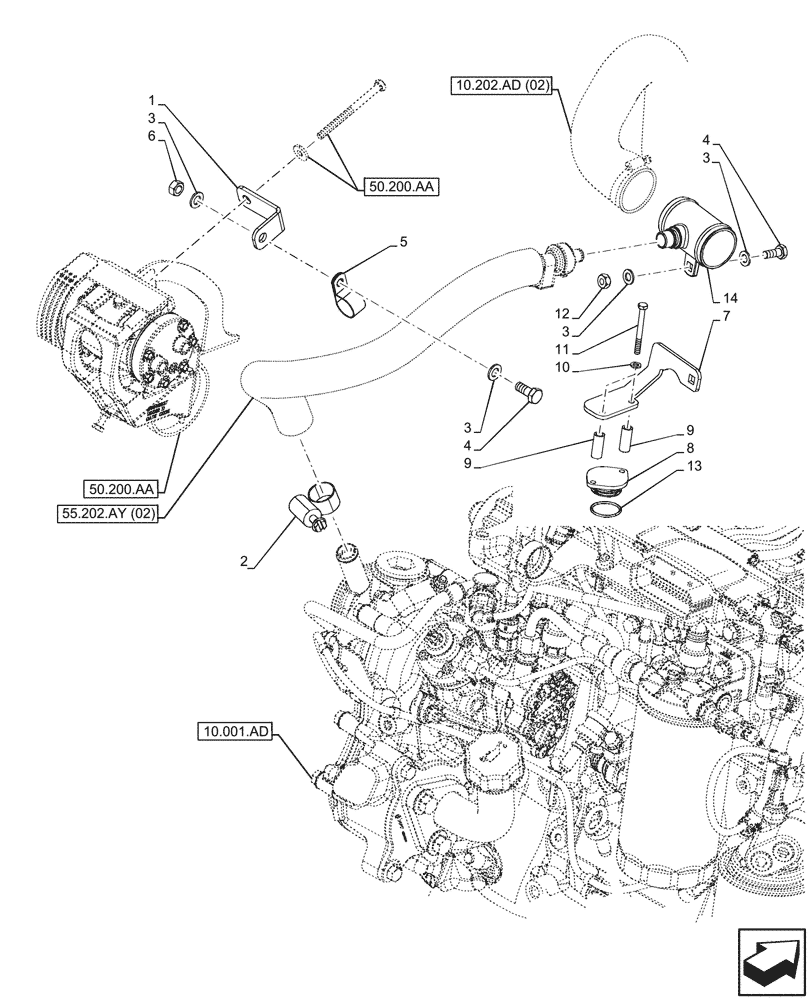

Запчасти Case 121F (10.202.AD[05]) - VAR - 402110 - AIR INLET HEATER, LINES, W/ AIR CONDITIONING (10) - ENGINE

1

47620568

BRACKET

1шт.

2

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

1шт.

3

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

4

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

2шт.

5

515-23444

CLAMP,1 3/4", Insul, 3/8" Bolt

1шт.

6

86500689

NUT,M10 x 1.5, Cl 10

1шт.

7

47834701

BRACKET

1шт.

8

47836347

BRACKET

1шт.

9

47699795

SPACER

2шт.

10

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

11

86639189

BOLT,Hex, M6 x 60mm, Cl 10.9

2шт.

12

87564742

NUT

1шт.

13

86625096

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

1шт.

14

47711885

FITTING

Intake Hose and CCV

1шт.
