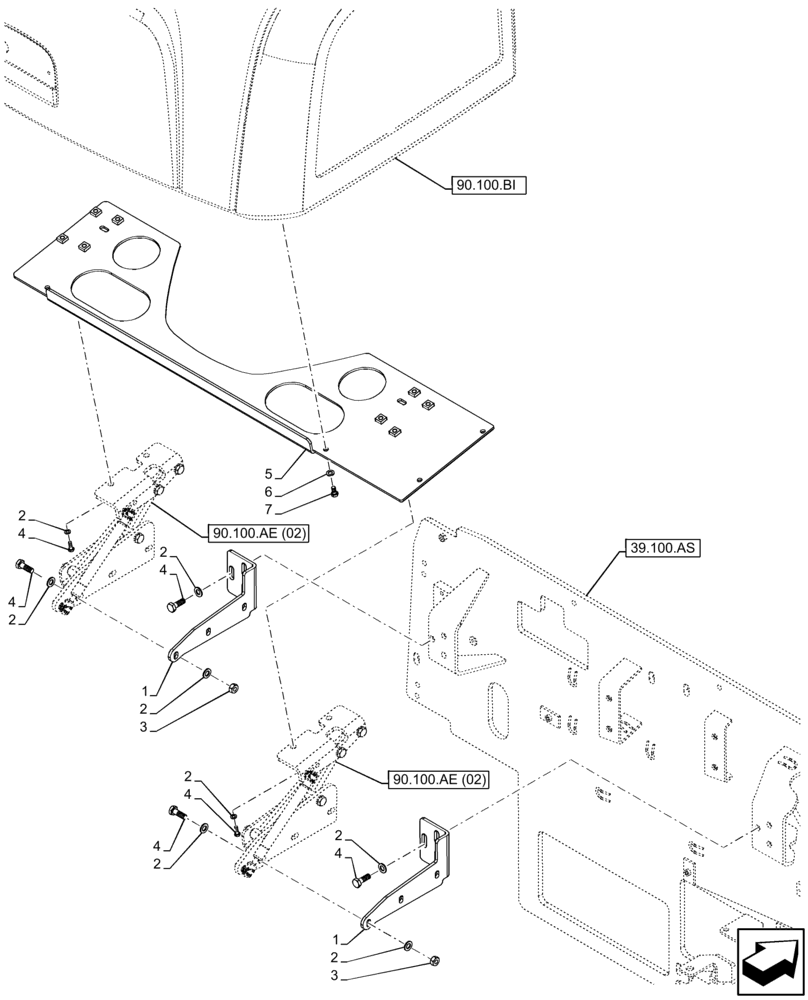

Запчасти Case 121F (90.100.AE[01]) - HOOD PIVOTING SYSTEM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47547780

BRACKET

2шт.

2

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

22шт.

3

87564742

NUT

6шт.

4

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

16шт.

5

47480453

PANEL

1шт.

6

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

7

43232

BOLT,Hex, M8 x 16mm, Cl 10.9

6шт.
