(89.800.AA[30]) - VAR - 734625 - ATTACHMENT, BUCKET, HIGH TIP (1.1M³ X 2050MM)

Запчасти Case 121F (89.800.AA[30]) - VAR - 734625 - ATTACHMENT, BUCKET, HIGH TIP (1.1M³ X 2050MM) (89) - TOOLS

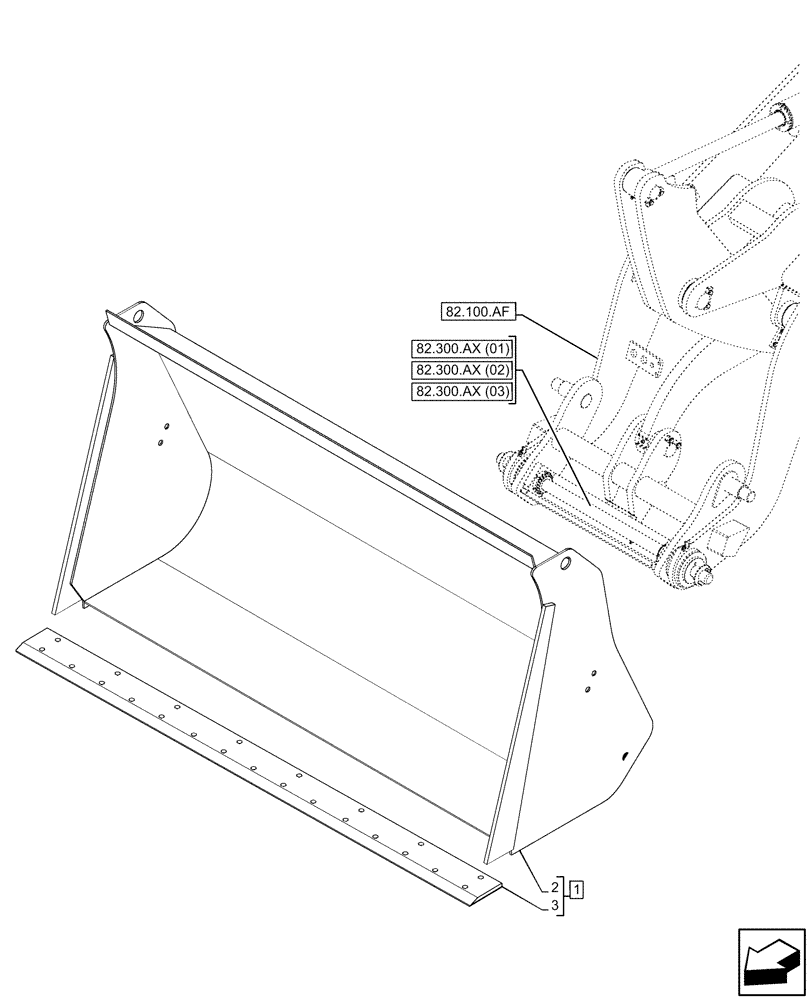

Схема запчастей Case 121F - (89.800.AA[30]) - VAR - 734625 - ATTACHMENT, BUCKET, HIGH TIP (1.1M³ X 2050MM) (89) - TOOLS
82.300.ax (01)
2
82.300.ax (02)
3
1
82.300.ax (03)
82.100.af
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47639730

BUCKET

Bucket 1.1M3x2100mm for SSL Coupler, ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

3

47606740

CUTTING EDGE

2100mm, 23 Holes for Fixing Screws

1шт.

Выбрано товаров: 3
