(89.800.AA[10]) - VAR - 734597 - ATTACHMENT, BUCKET (0.9M³ X 2050MM)

Запчасти Case 121F (89.800.AA[10]) - VAR - 734597 - ATTACHMENT, BUCKET (0.9M³ X 2050MM) (89) - TOOLS

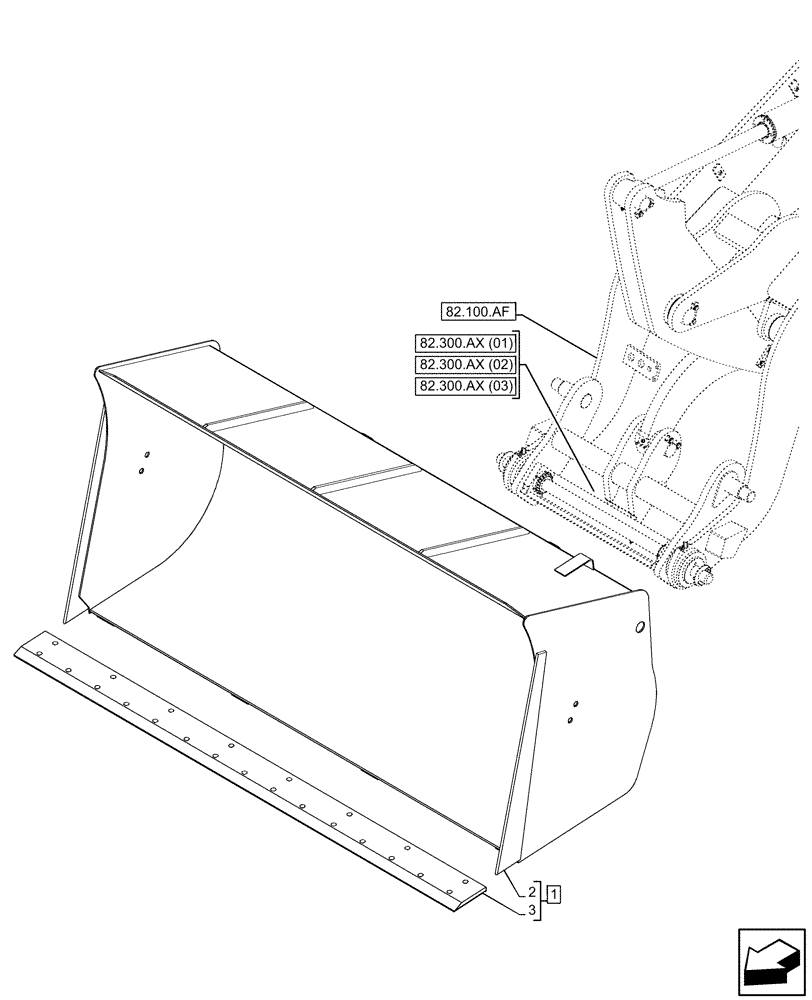

Схема запчастей Case 121F - (89.800.AA[10]) - VAR - 734597 - ATTACHMENT, BUCKET (0.9M³ X 2050MM) (89) - TOOLS
1
82.100.af
82.300.ax (02)
82.300.ax (01)
82.300.ax (03)
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47607874

BUCKET

0.9M3x2050mm, ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

3

47606743

CUTTING EDGE

2050mm, 24 Holes for Fixing Screws

1шт.

Выбрано товаров: 3
