Запчасти Case 121F (55.526.AF) - VAR - 734520 - SWITCH RIDE CONTROL (55) - ELECTRICAL SYSTEMS

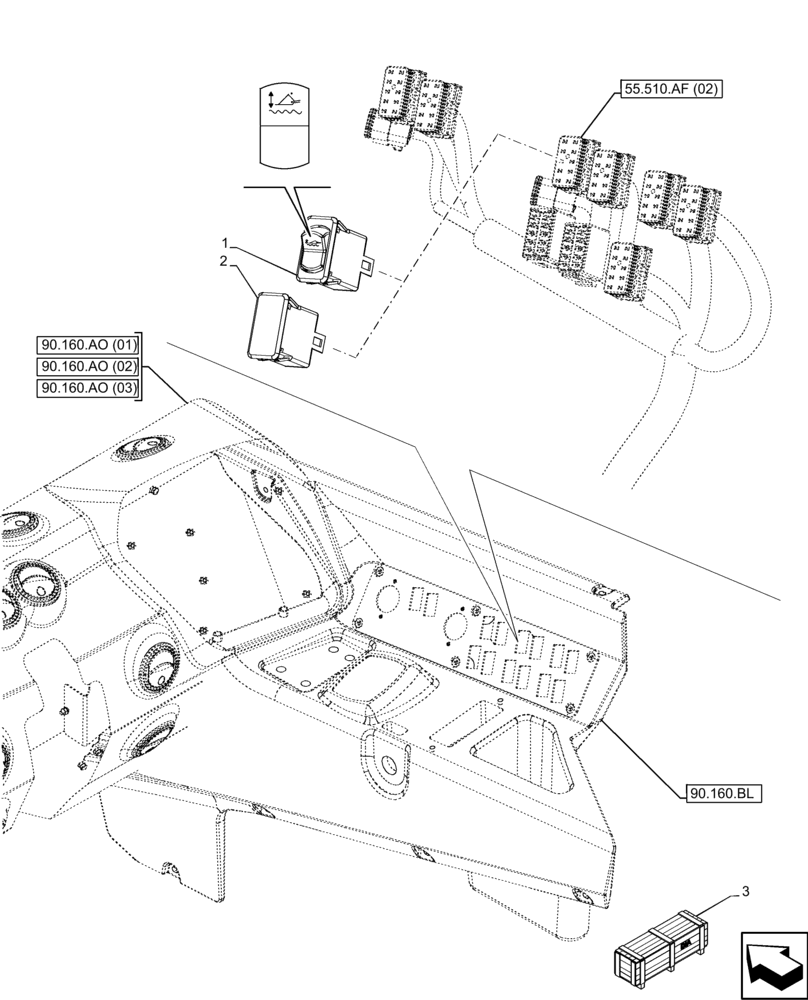

Схема запчастей Case 121F - (55.526.AF) - VAR - 734520 - SWITCH RIDE CONTROL (55) - ELECTRICAL SYSTEMS
3
2
90.160.ao (02)
90.160.ao (01)
55.510.af (02)
90.160.ao (03)
90.160.bl
1

Артикул

Название

Примечание

Количество

1

84581413

ROCKER SWITCH

Ride Control

1шт.

2

71451827

PLUG

VAR - 402035 - No Ride Control

1шт.

3

47700189

CONSTRUCTION DIA

Ride Control W50C, W60C, 21F, 121F TC, Incl 1

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

3

47700206

CONSTRUCTION DIA

Ride Control W50C, W60C, 21F, 121F Z Bar, Incl 1

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

3

47700210

CONSTRUCTION DIA

Ride Control W70C, W80C, 221F, 321F Z Bar, Incl 1

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

Выбрано товаров: 8
