Запчасти Case 121F (55.512.CQ) - VAR - 734590 - SEAT, AIR SUSPENSION, CONTROL, SENSOR (55) - ELECTRICAL SYSTEMS

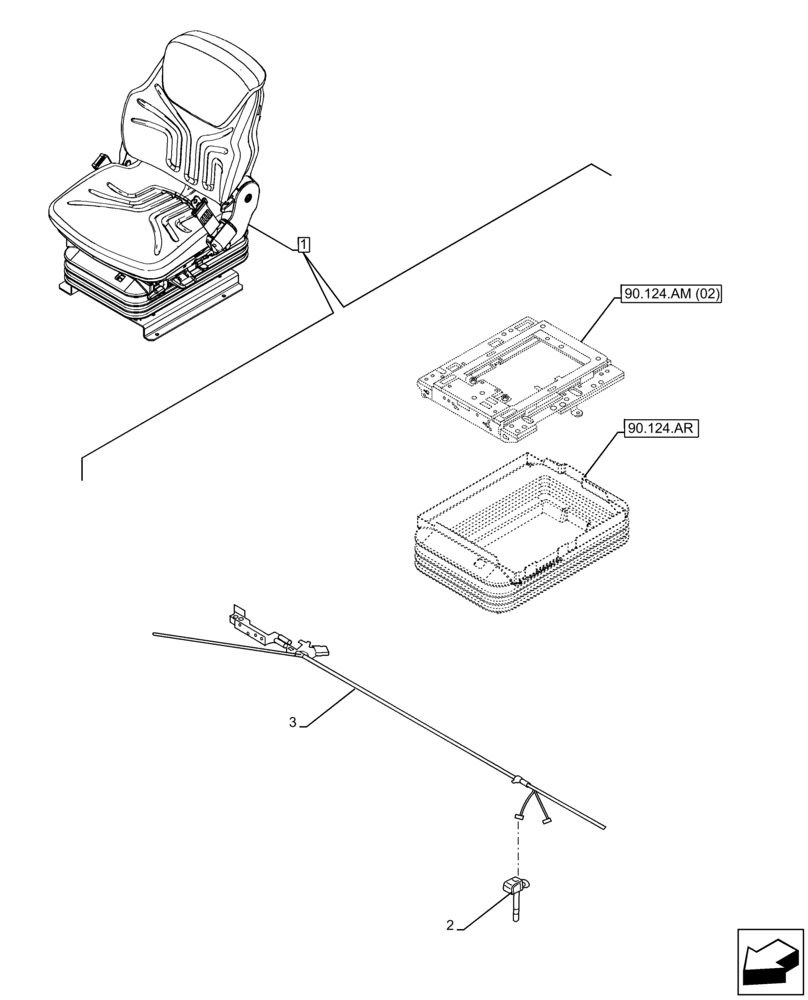

Схема запчастей Case 121F - (55.512.CQ) - VAR - 734590 - SEAT, AIR SUSPENSION, CONTROL, SENSOR (55) - ELECTRICAL SYSTEMS
3
90.124.ar
90.124.am (02)
2
1

Артикул

Название

Примечание

Количество

1

47639365

DRIVER SEAT

ASSY, Fabric Wheat, Incl 2, 3

1шт.

Air Suspension

1шт.

See Seat Components also in Figures, 90.151.AD (02), 90.124.AF, 90.124.AG, 90.124.AH, 90.124.AM (01), 90.124.AL, 90.124.AM (02), 90.124.AP, 90.124.AN, 90.124.AR, 90.124.AO

1шт.

2

47540039

LEVEL

Indicator

1шт.

3

84255282

KIT

Mounting Parts

1шт.

Выбрано товаров: 5
