(55.415.AA) - VAR - 782734 - LOADER BUCKET, CONTROL, HARNESS

Запчасти Case 121F (55.415.AA) - VAR - 782734 - LOADER BUCKET, CONTROL, HARNESS (55) - ELECTRICAL SYSTEMS

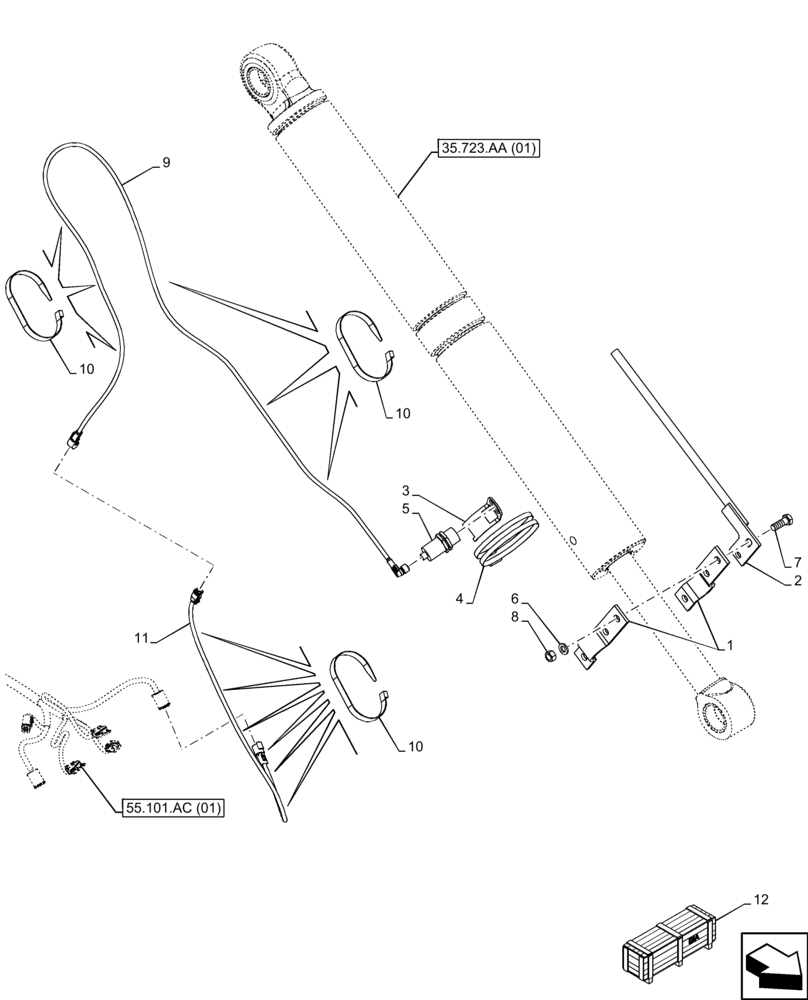

Схема запчастей Case 121F - (55.415.AA) - VAR - 782734 - LOADER BUCKET, CONTROL, HARNESS (55) - ELECTRICAL SYSTEMS
4
55.101.ac (01)
6
10
5
1
9
10
10
11
2
7
3
12
8
35.723.aa (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6100022

PIPE CLAMP

2шт.

2

47538448

ROD

Shift Return To Dig

1шт.

3

6559474

HOLDER

Bracket Initiator

1шт.

4

13001490

HOSE CLAMP,Worm Gear, 110mm/130mm x 9mm W, CST, ZND

2шт.

5

2186122

PRESSURE SWITCH

Pressure

1шт.

6

10520021

WASHER,12.2mm ID x 22mm OD x 3mm Thk

3шт.

7

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

3шт.

8

337475

NUT,M12, Cl 10

3шт.

9

87613690

WIRE HARNESS

Initiator RTD

1шт.

10

435437A1

CABLE TIE,3/16" x 7 1/4"

12шт.

11

47591072

JUMPER

1шт.

12

47700216

CONSTRUCTION DIA

Return to Dig W50C, W60C, TC, Incl 1 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT PIN Is Shown

1шт.
