Запчасти Case 121F (55.302.AI[05]) - VAR - 734575, 734653, 734654 - BATTERY CABLE (55) - ELECTRICAL SYSTEMS

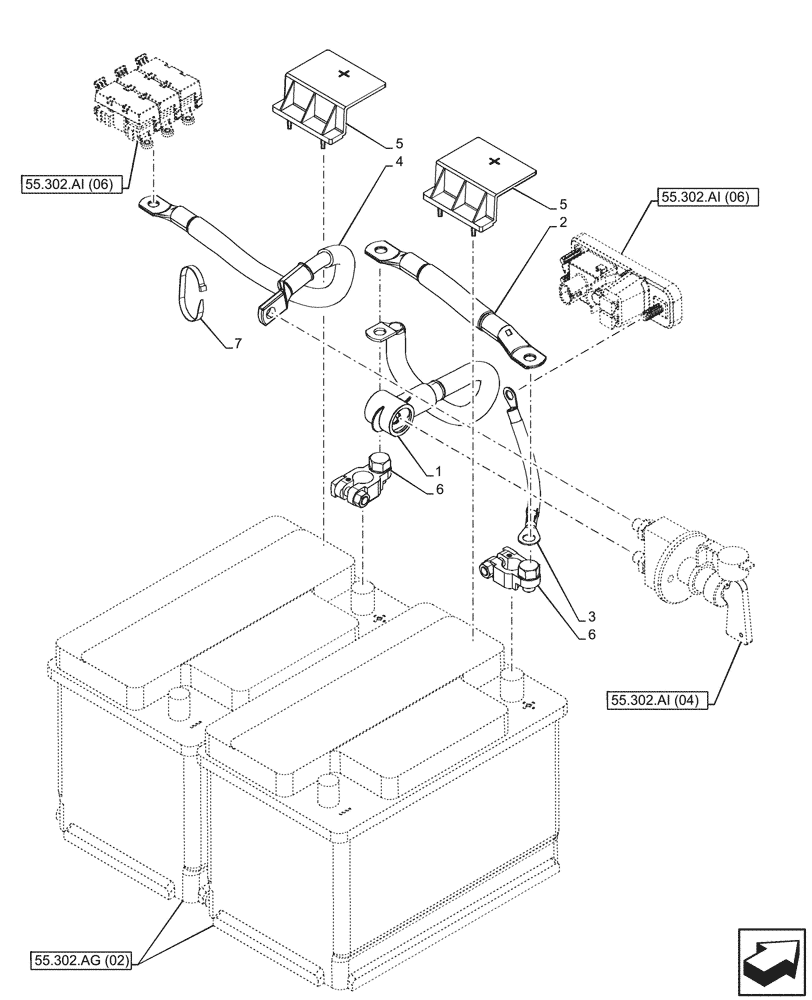

Схема запчастей Case 121F - (55.302.AI[05]) - VAR - 734575, 734653, 734654 - BATTERY CABLE (55) - ELECTRICAL SYSTEMS
55.302.ai (06)
3
1
5
6
4
2
5
6
7
55.302.ag (02)
55.302.ai (04)
55.302.ai (06)

Артикул

Название

Примечание

Количество

1

47616201

POS BATTERY CABLE

to Master Switch

1шт.

2

47616204

POS BATTERY CABLE

Double Battery

1шт.

3

47616202

POS BATTERY CABLE

Main ECU Relay

1шт.

4

47616199

POS BATTERY CABLE

Master Switch to Fuse, Serial Range: -NEHP00209

1шт.

4

47728467

POS BATTERY CABLE

Master Switch to Fuse, Start Serial: NEHP00210

1шт.

5

85826906

GUARD

2шт.

6

47588886

TERMINAL,Positive M10

Positive

2шт.

7

84536921

CABLE TIE,203.2mm L

1шт.

Выбрано товаров: 8
